1994 - 2007 History Pictures Page
2004 2.2L Turbo II - 11.62@119mph Mods & Specs Page
Videos!

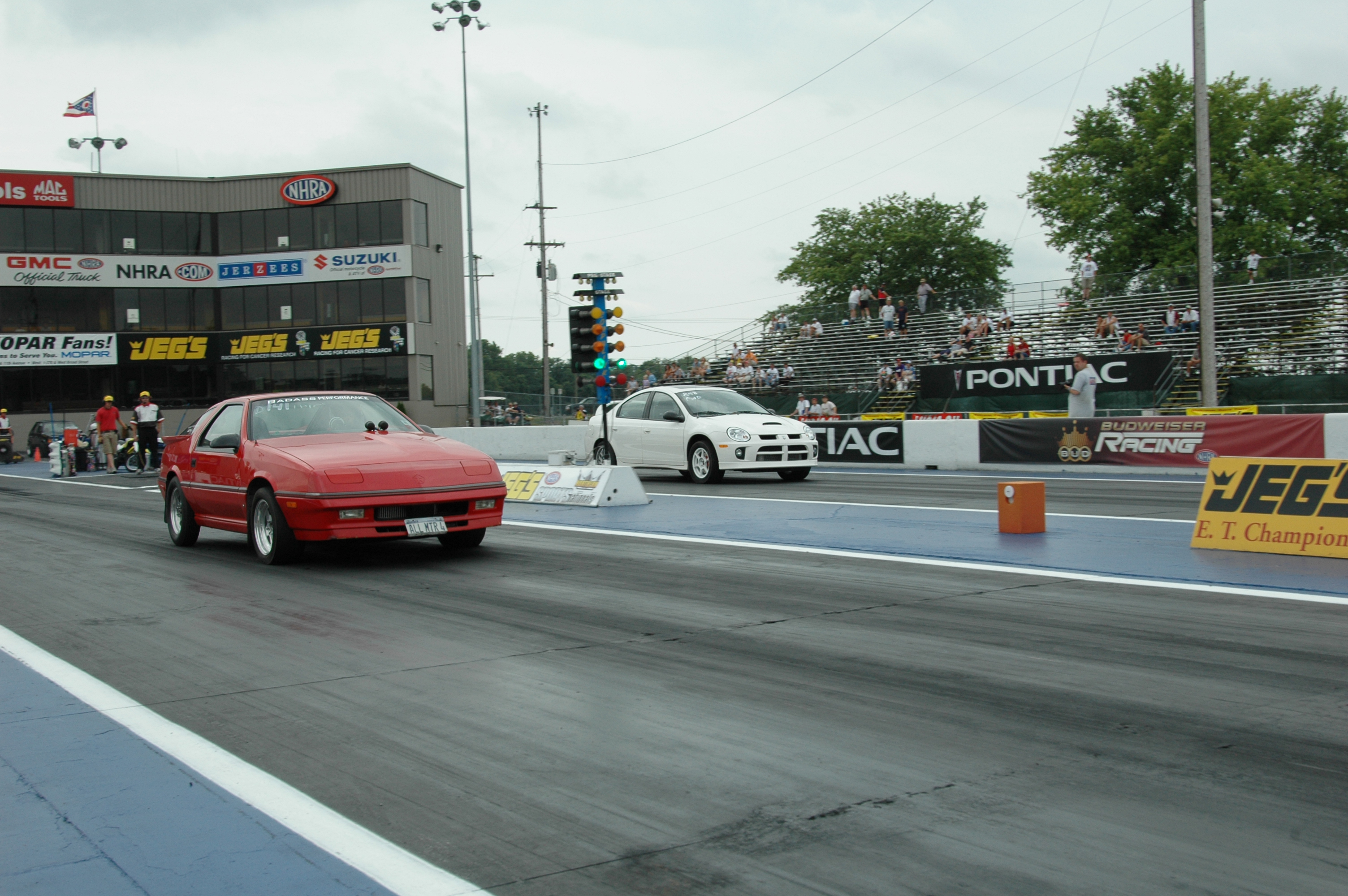

12.22 @ 117 Union Grove 05JN09
|
||
 |
||

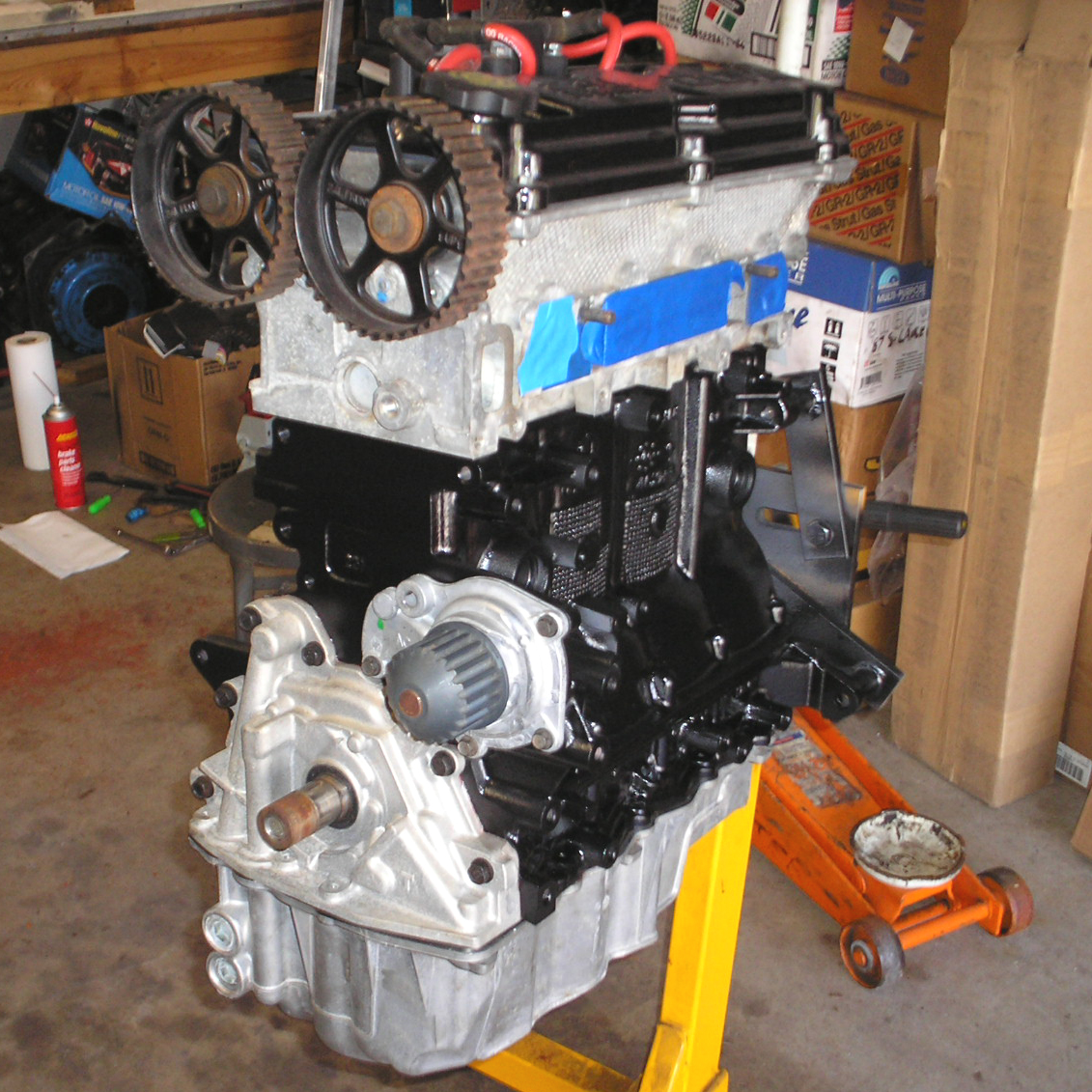

| '97 2.4L N/A Long Block Stock Crank |
 |
|

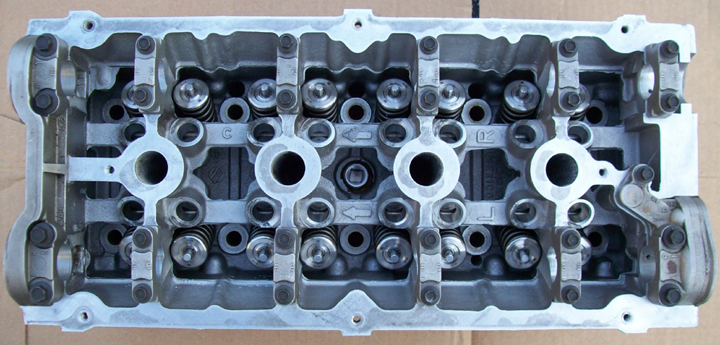

| '97 2.4L DOHC Head ported and assembled by Eddy Fierro with BC valves, springs and retainers |  |
|

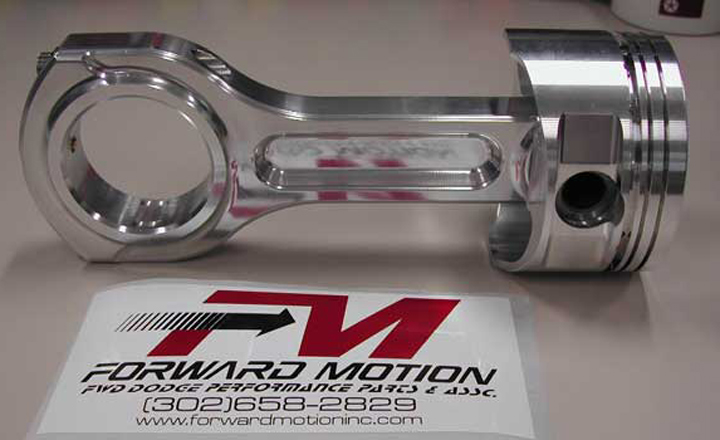

| Forward Motion Aluminum Rods and JE Pistons |  |
|
| Mopar SRT-4 Oil Pump |  |
|

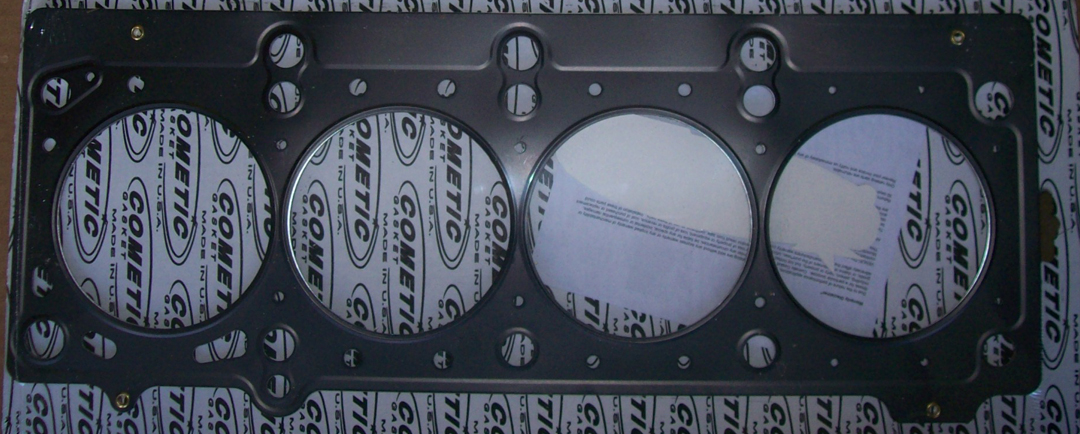

| Cometic Head Gasket |  |
|

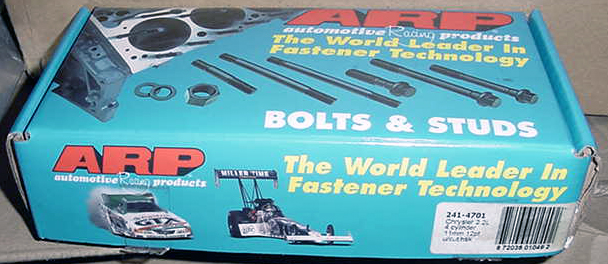

| ARP Head Studs |  |
|

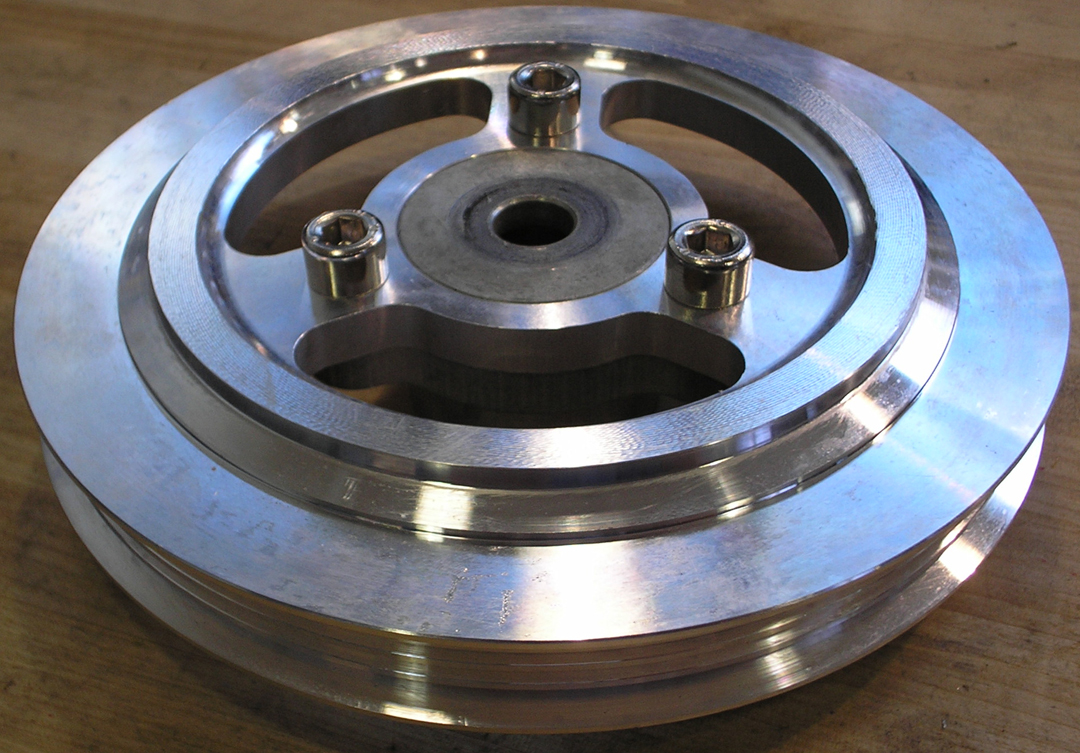

| Aluminum Underdrive Pulley - Outer Belt Groove Removed |  |
|

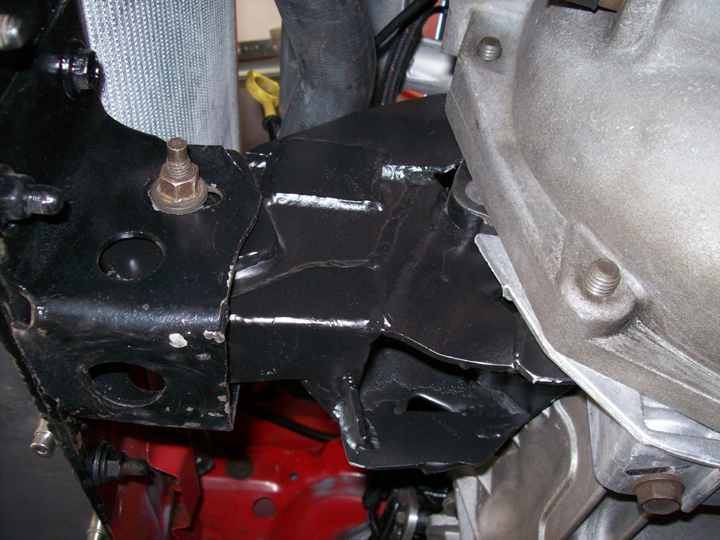

| Bad Ass Performance Solid Front Mount |  |
|

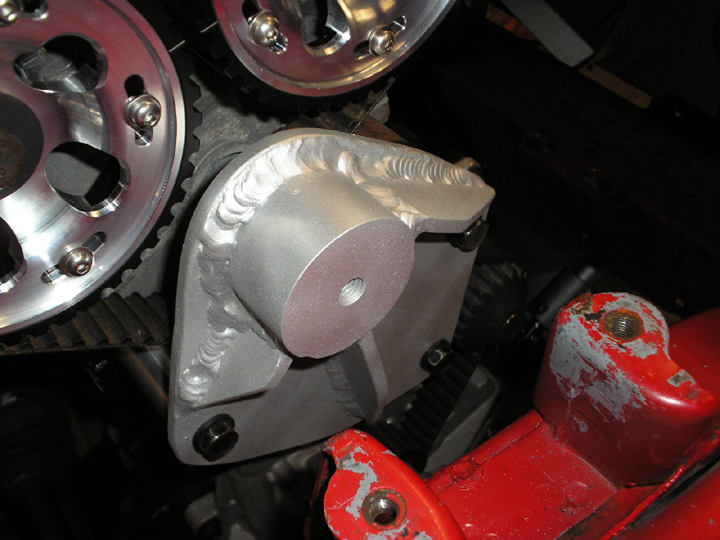

| Bad Ass Performance Solid Side Mount |  |
|
 |
||

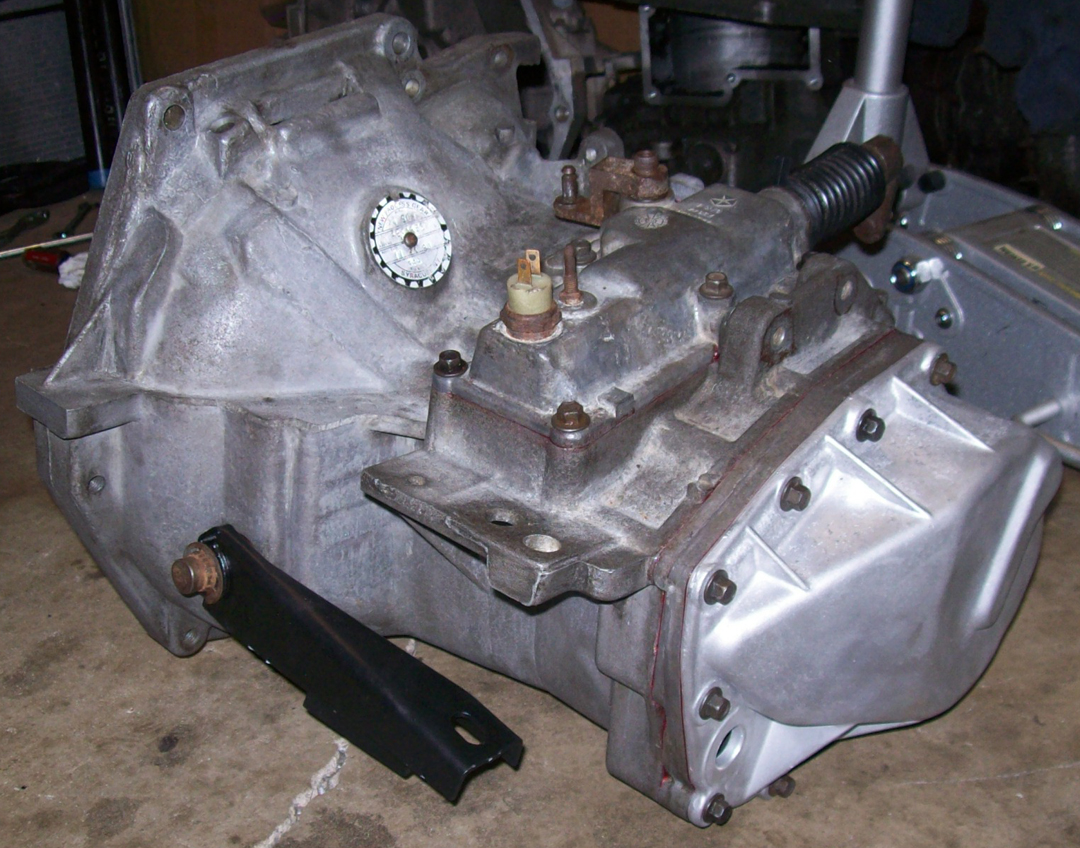

| '91
A568 Transaxle - 3.50:1 FDR |
 |
|
| OBX Limited Slip Differential |  |
|

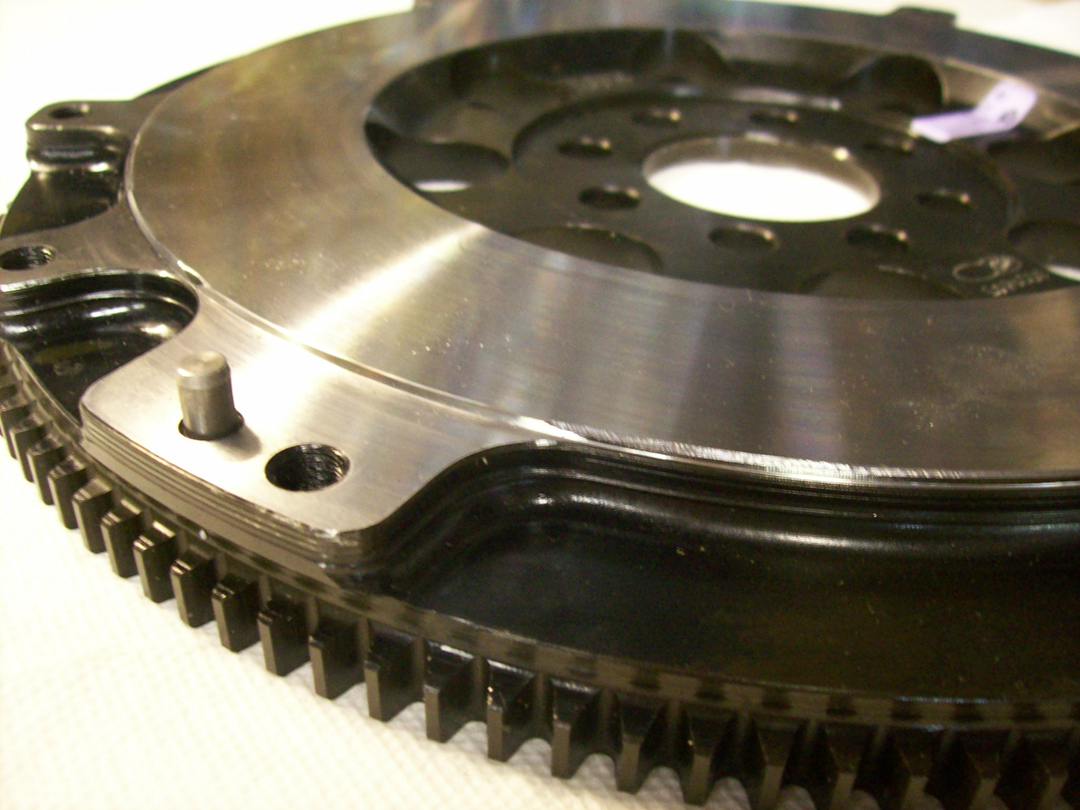

| ACT Steel Flywheel |  |
|

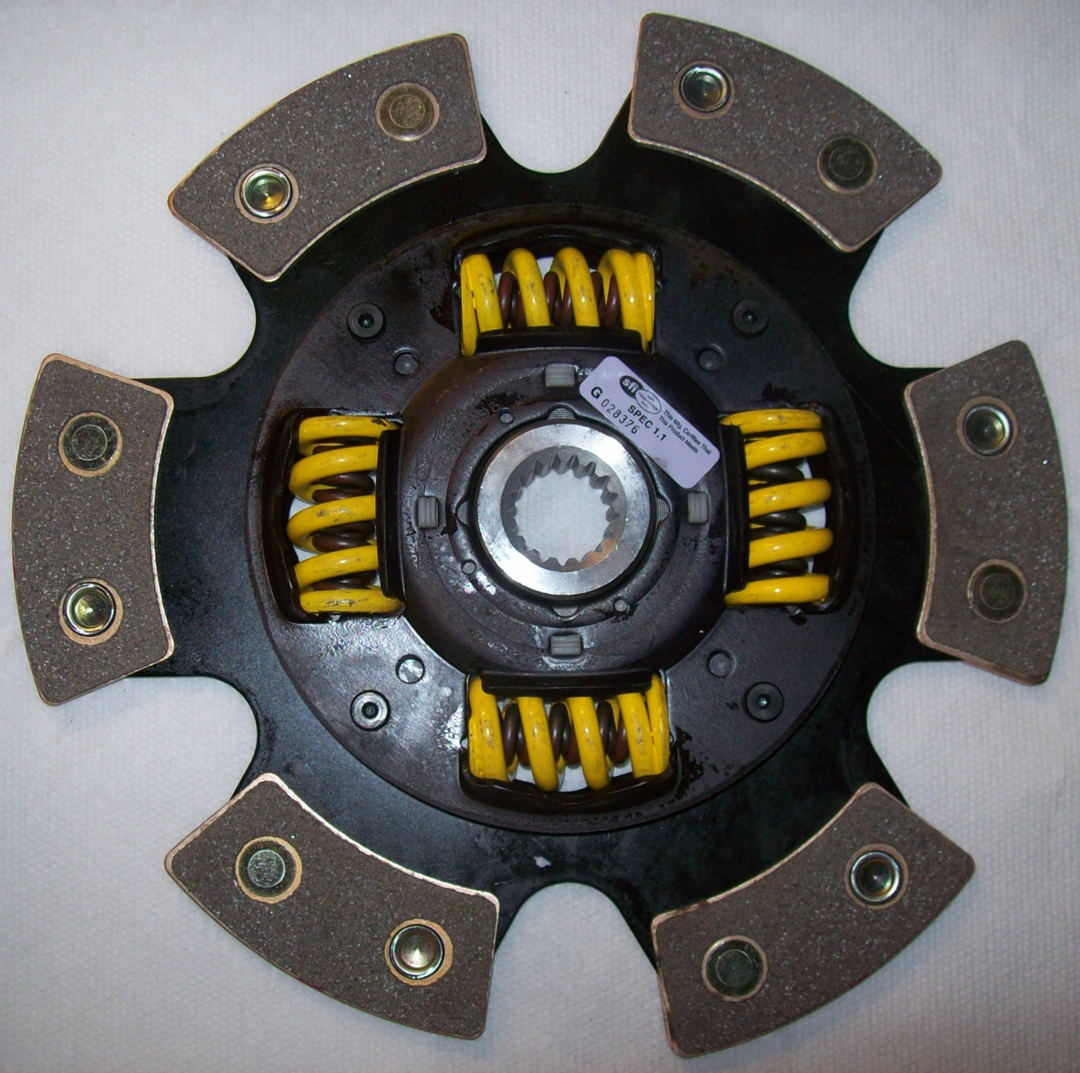

| ACT 6-Puck Disk |  |
|

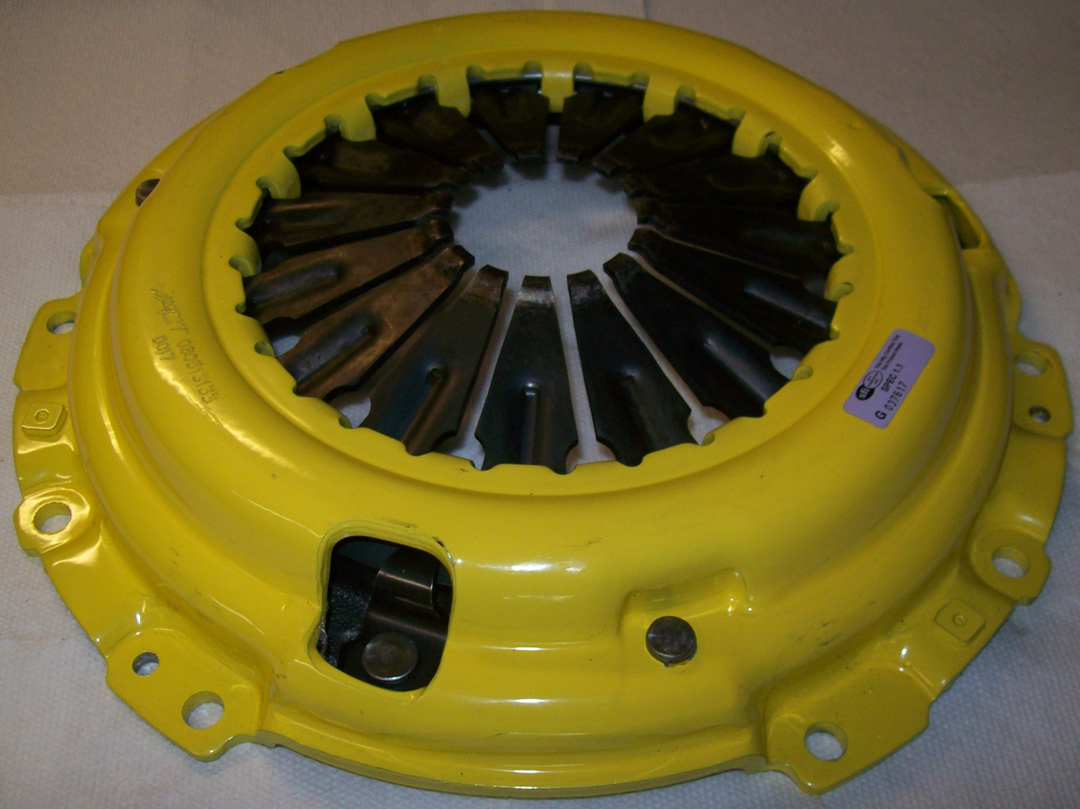

| ACT HD Pressure Plate |  |
|

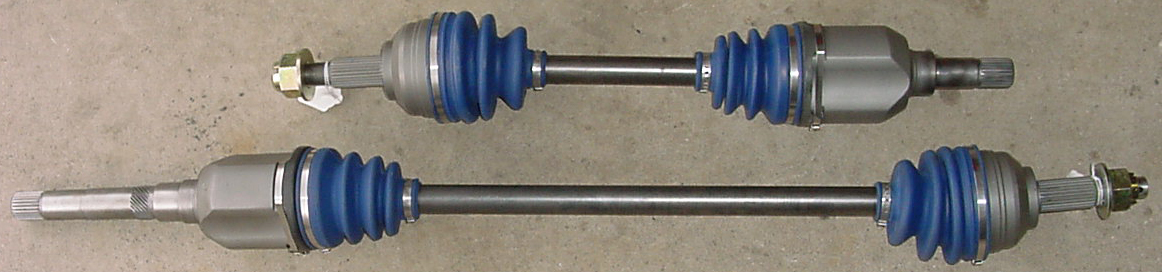

| Drive Shaft Shop Level 5 Axles |  |
|

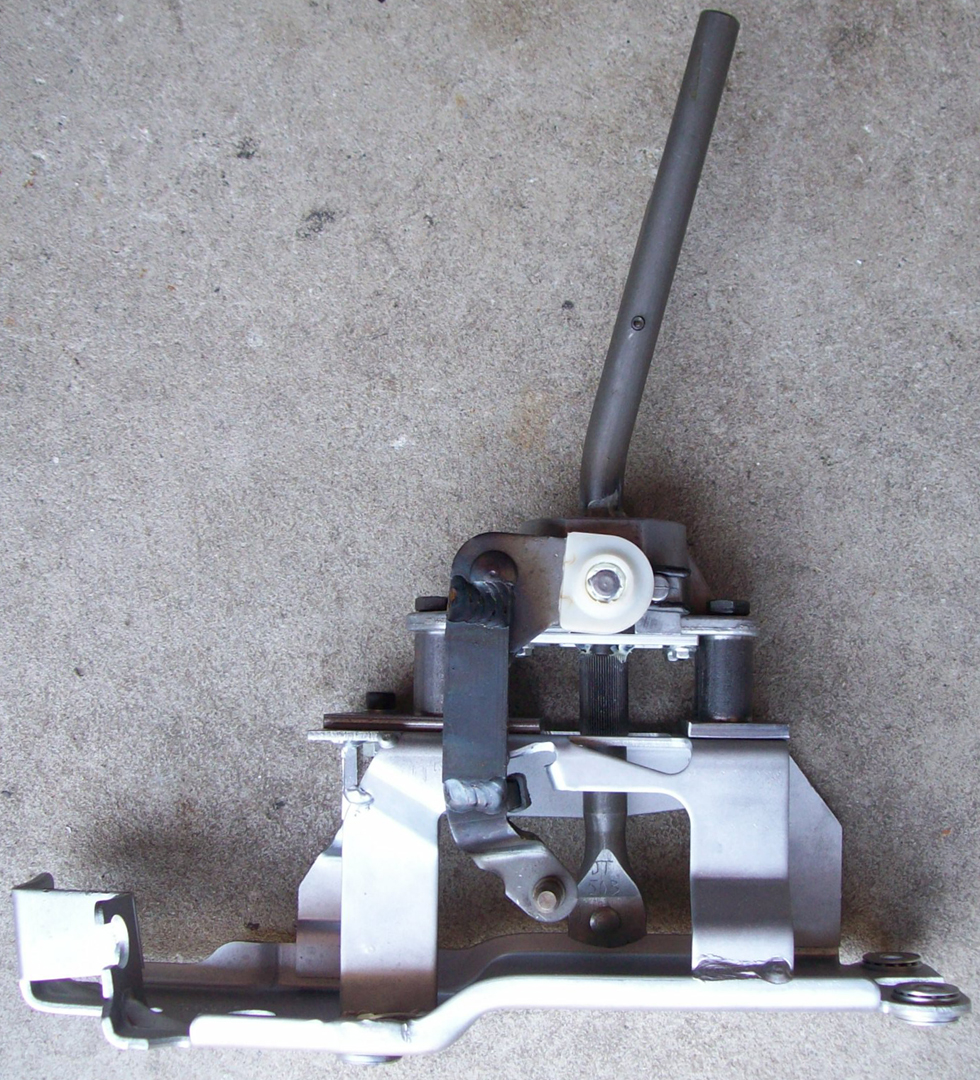

| Mad Dog Short Throw Shifter with Rod Brake |  |
|

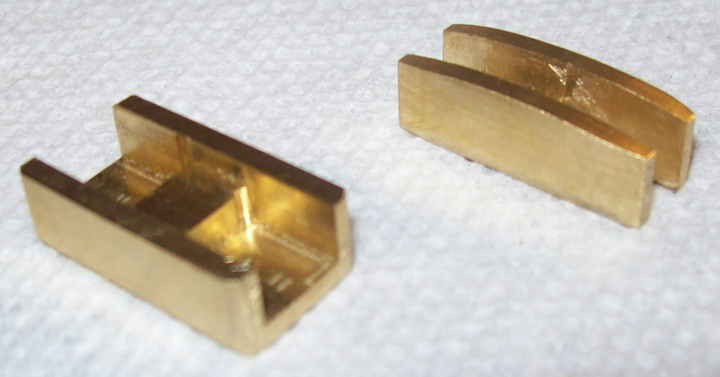

| Bad Ass Performance Brass Shift Fork Pads |  |
|

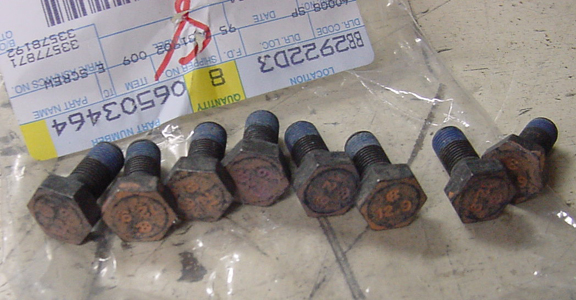

| Mopar Flywheel Bolts - Stock |  |
|

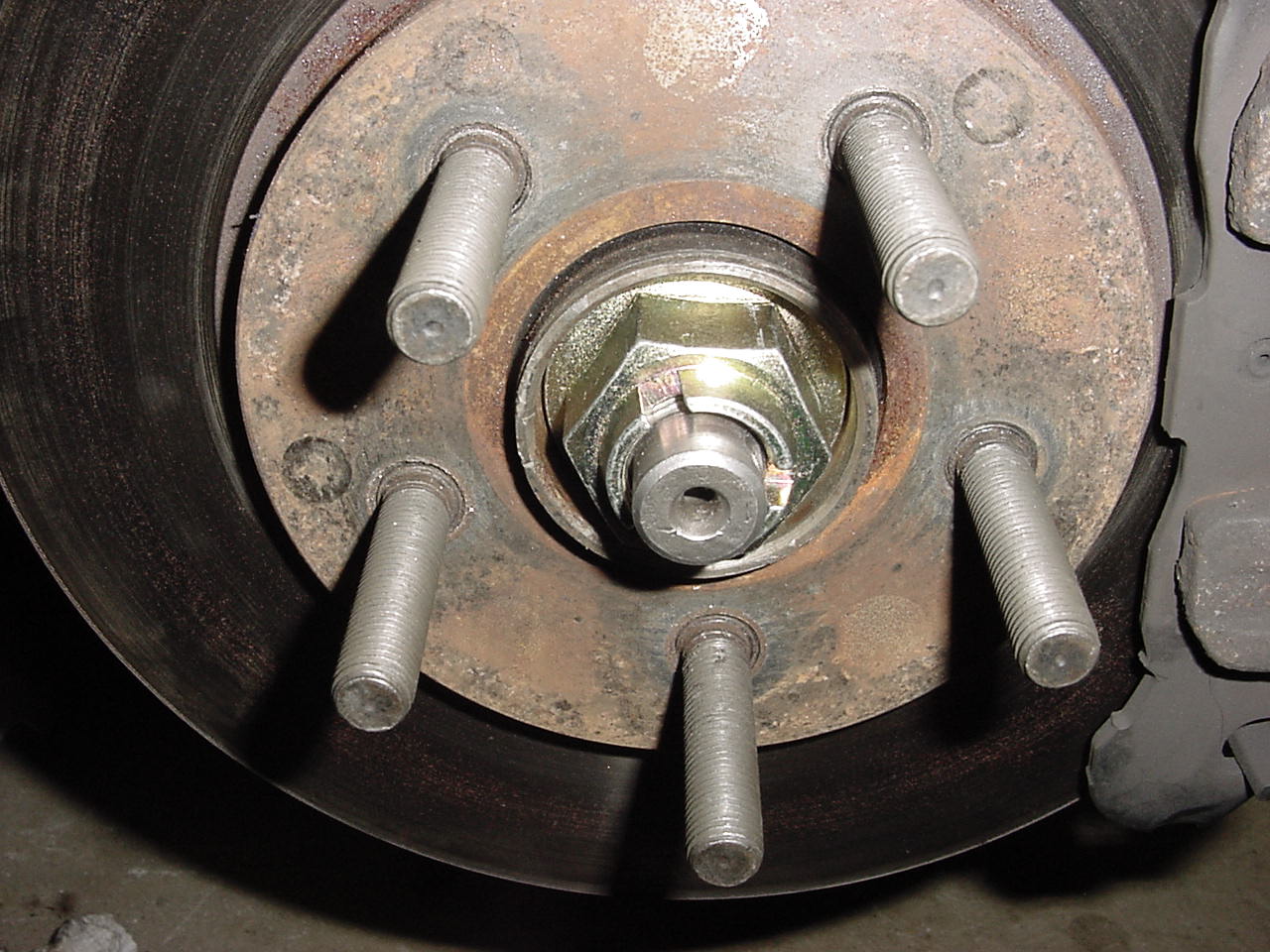

| Mopar Performance long wheel studs (all 4 corners) |  |
|
 |
||

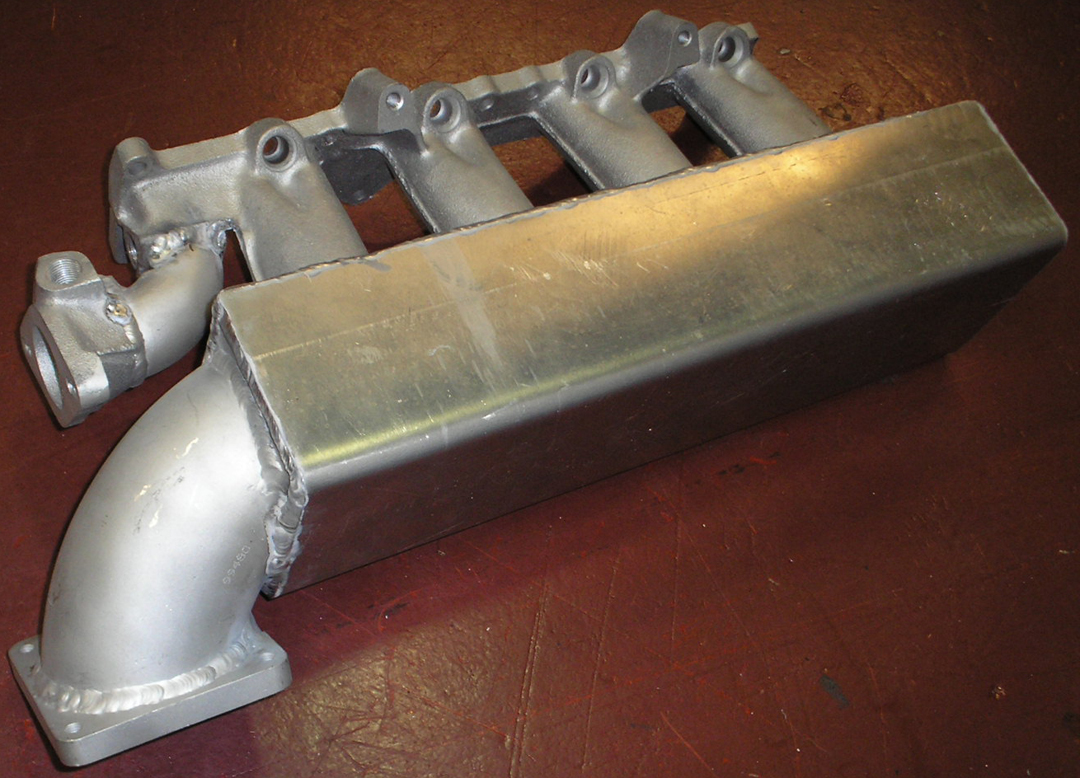

| Bad
Ass Performance Box Plenum Velocity Stack Intake Manifold |
 |
|
| Forward Motion Fidanza Aluminum Adjustable Cam Sprockets |  |
|
| Brian Crower BC-3 Cams |  |
|
| Stock Valvetrain Hardware |  |
|

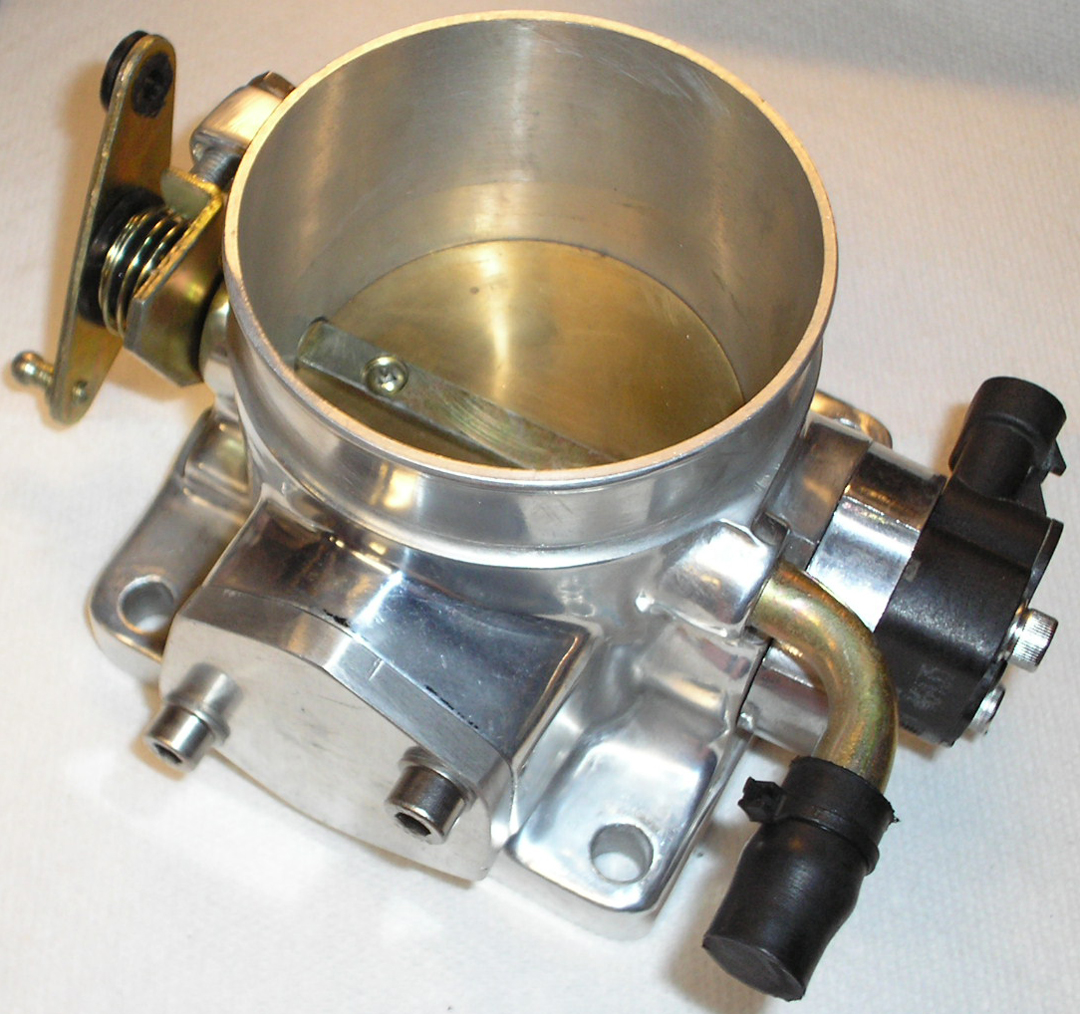

| Power 75mm Throttle Body |  |
|
| Spearco
1500 CFM Intercooler - Front Mount |
 |
|

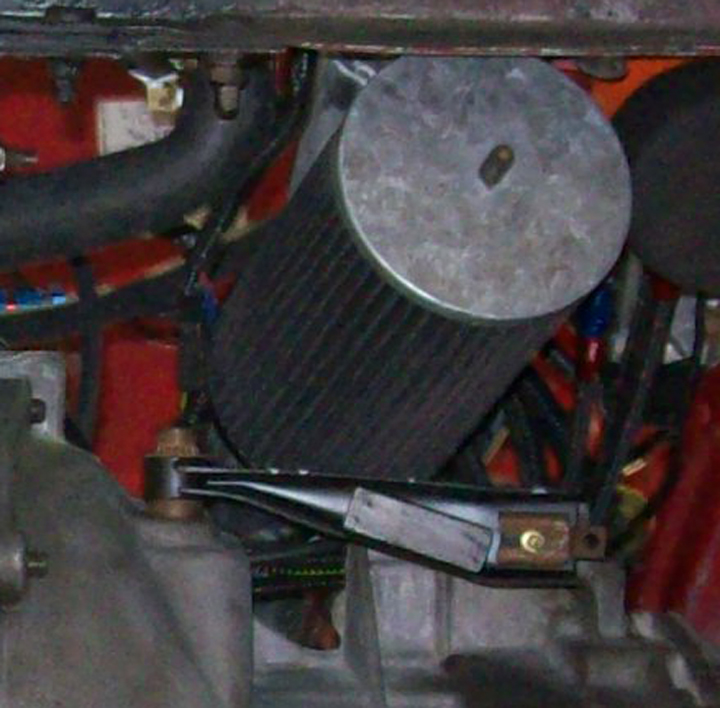

| 3" Inlet (850cfm) K&N Cone Filter from Lorenz Racing |  |
|

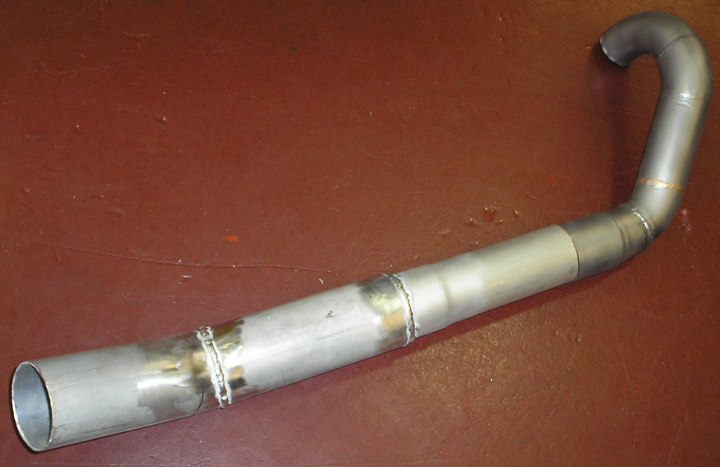

| Bad Ass Performance Custom IC Pipes |  |
|
| HKS Blow Off Valve on Bad Ass Performance IC Aluminum Pipe |  |
|

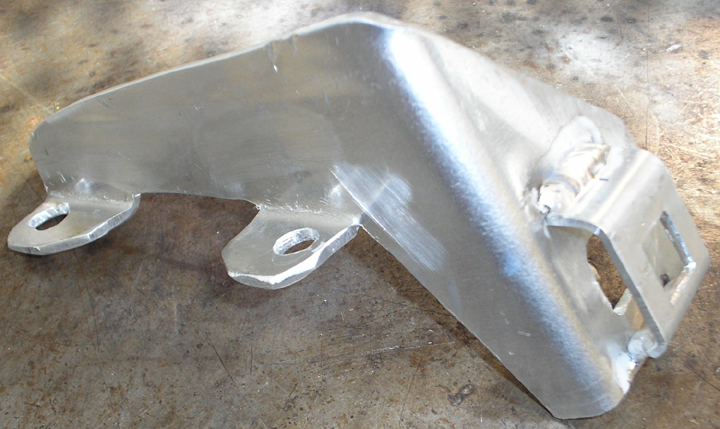

| Bad Ass Performance Throttle Cable Bracket |  |
|
 |
||

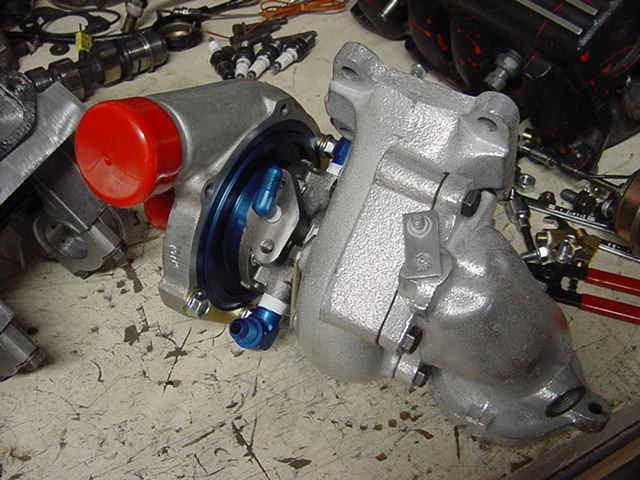

| Bad
Ass Performance Spec - Turbonetics T03/04 Hybrid (.63 A/R Stage 3 /
60-1 HiFi in T04B housing) |
 |
|

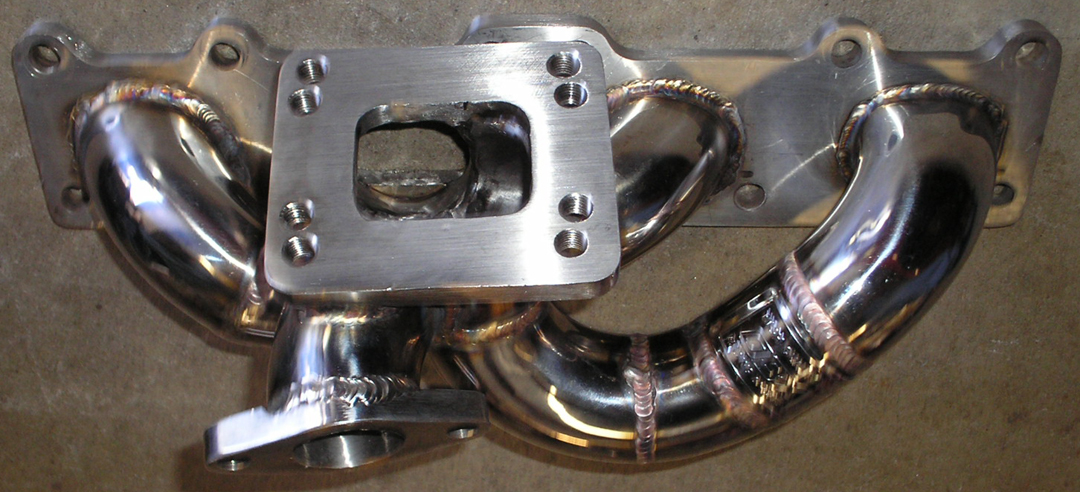

| OBX Stainless 2.4L Turbo Header |
 |
|

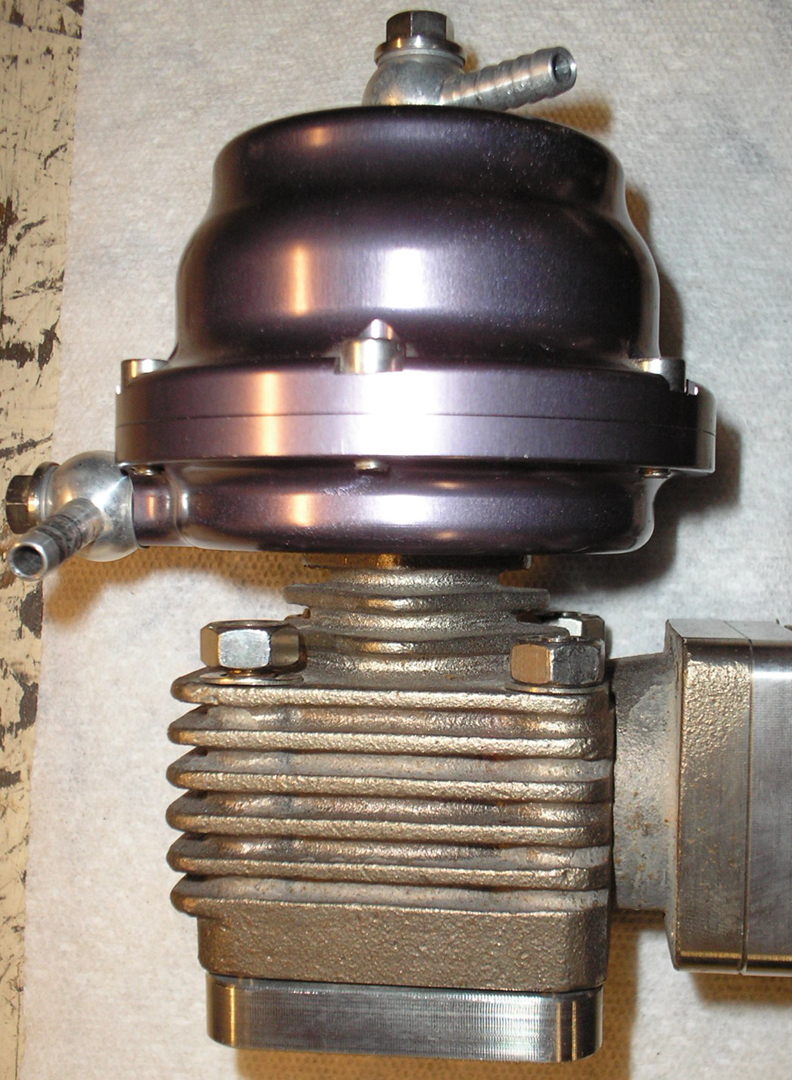

| TiAL External Wastegate |
 |
|
| Bad Ass Performance (Grainger style) Boost Controller |  |
|
| ARP
Exhaust Manifold Studs |
 |
|

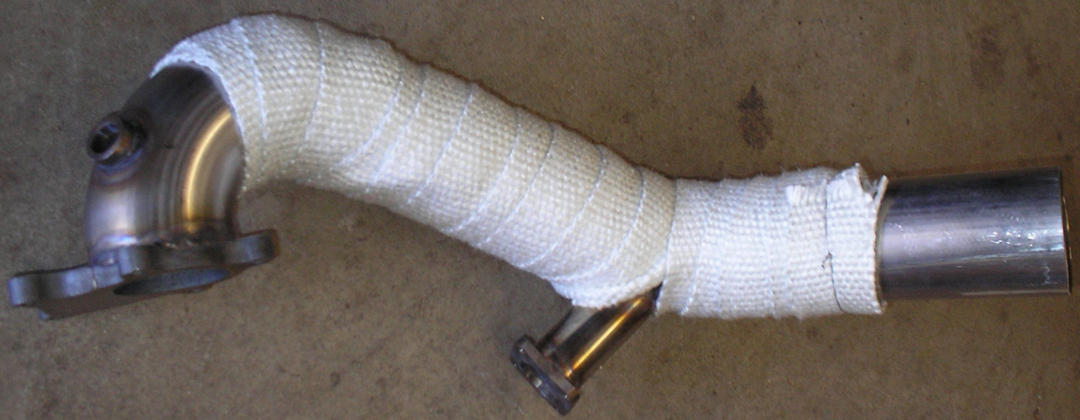

| Bad Ass Performance 3" Stainless Down Pipe (Thermal Wrapped) |
 |
|

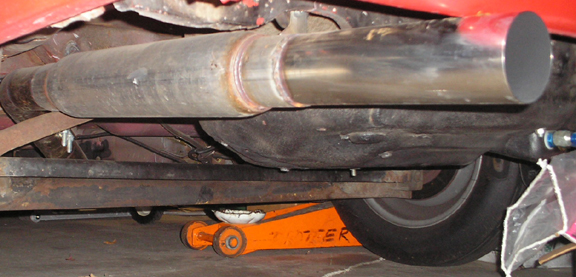

| 3" Dynomax Race Magnum Bullet Muffler (stock location) 3" Mandrel Bent 304 Stainless Exhaust Pipe |
 |
|

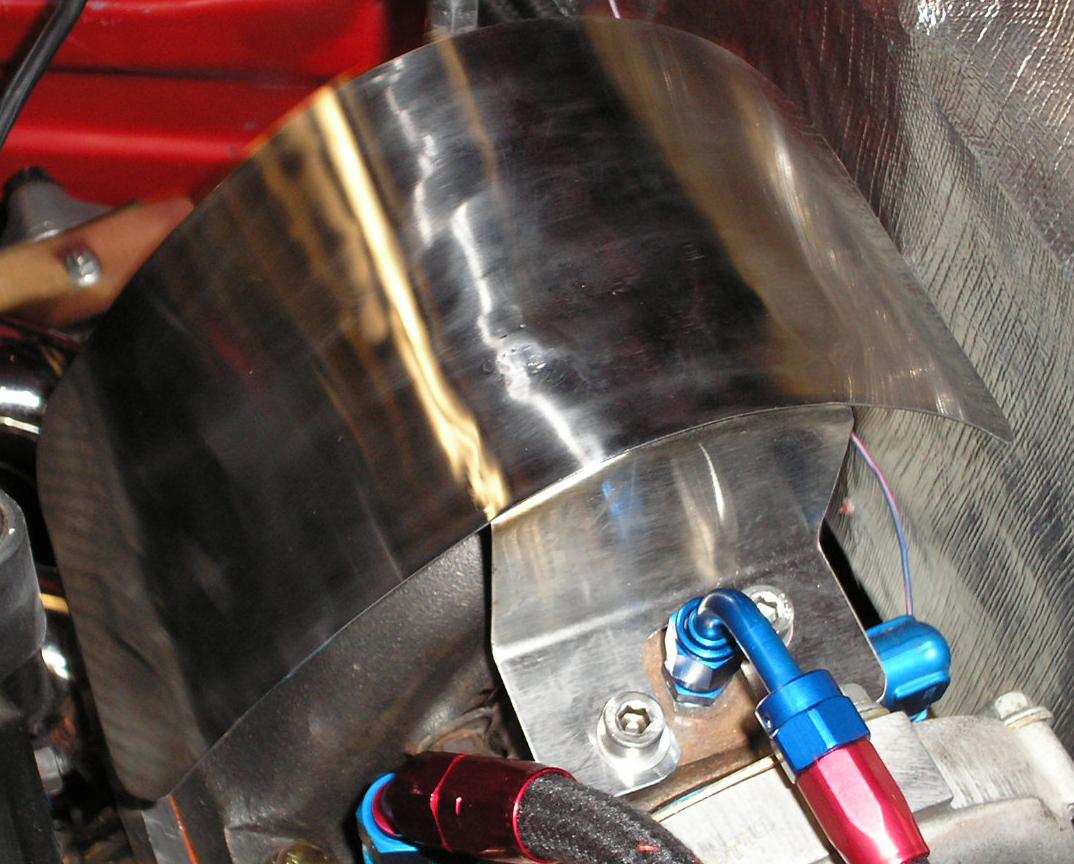

| Bad Ass Performance Turbo Heat Shield |
 |
|

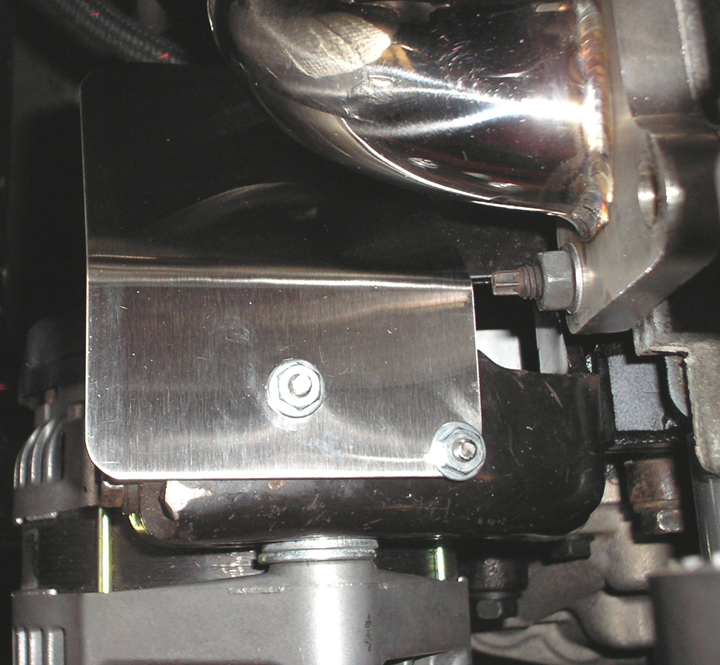

| Bad Ass Performance Alternator Heat Shield |
 |
|
| Thermotec Firewall Wrap |
 |
|

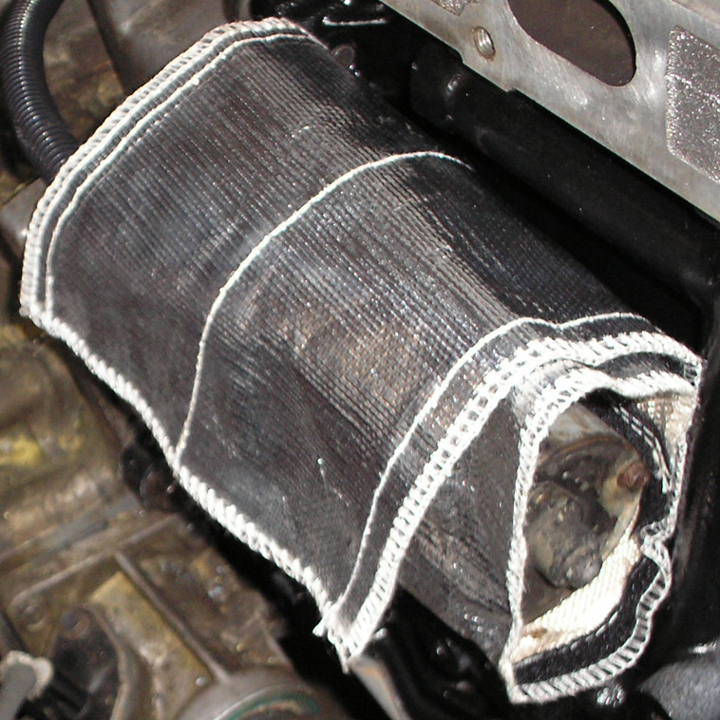

| Summit Racing Starter Blanket |
 |
|
|
|
||
 |
||
| Forward
Motion 72pph Injectors |
 |
|
| Kinsler
Fuel Rail |
 |
|

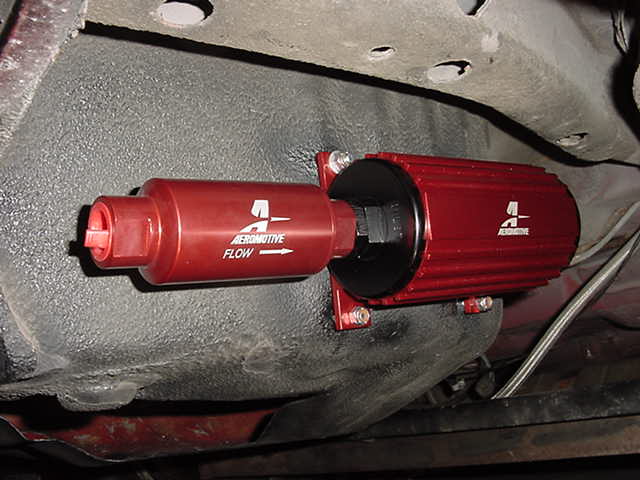

| Aeromotive
A1000 Fuel Pump & Dual Filters |
 |
|
| SX
Adjustable Fuel Pressure Regulator |
 |
|
| JAZ
8 Gallon Fuel Cell |
 |
|
| Aeroquip AN-10 Fuel Line |  |
|
 |
||

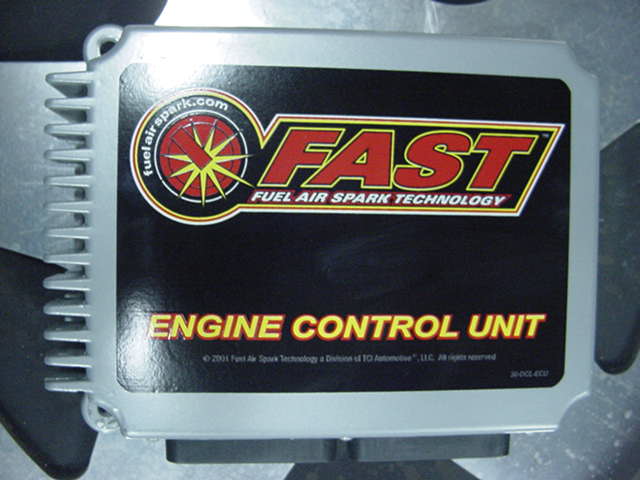

| Forward
Motion FAST EFI ECU |
 |
|

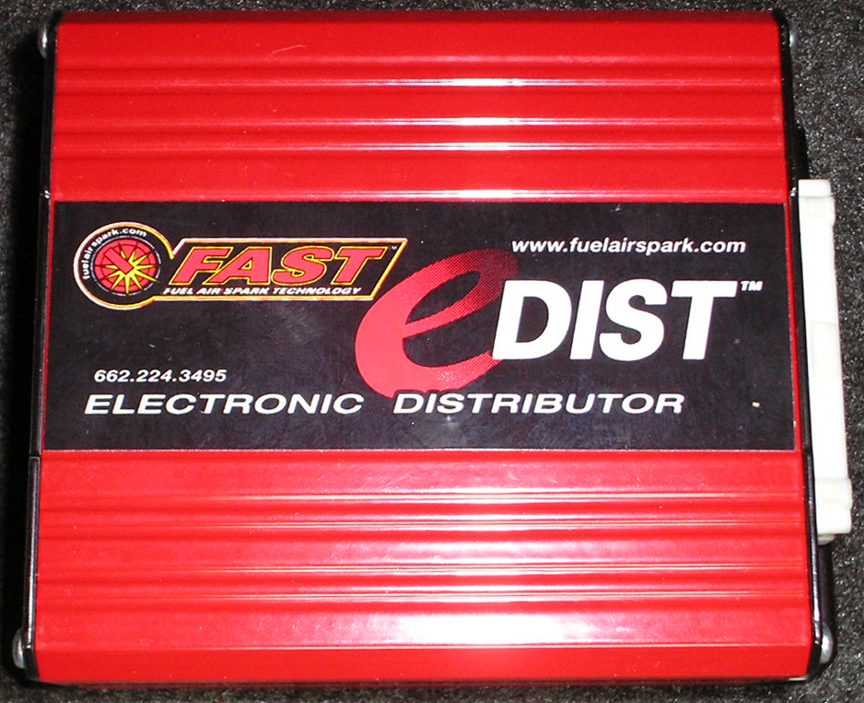

| Forward
Motion FAST eDIST |
 |
|

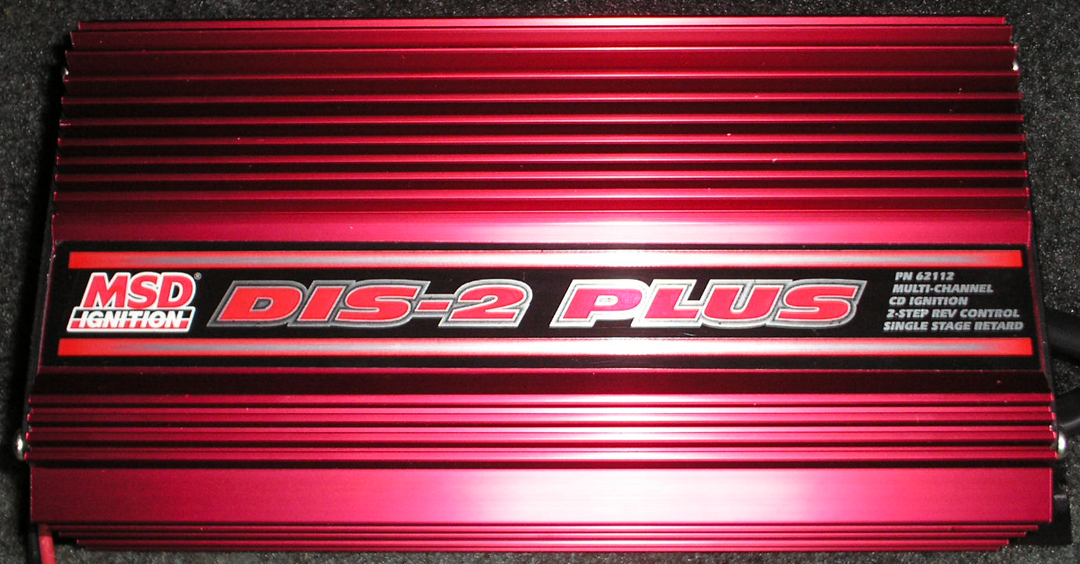

| MSD
DIS-2 Plus |
 |
|
| Magnecor KV100 10mm Race Ignition Wires |  |
|

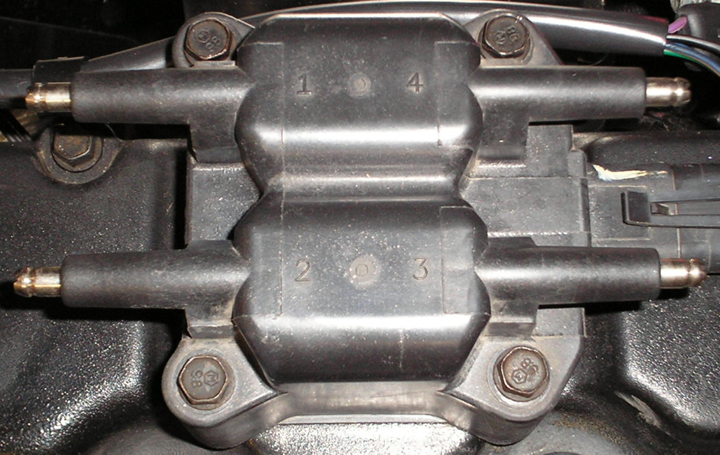

| Mopar Stock 2.4L Coil |  |
|

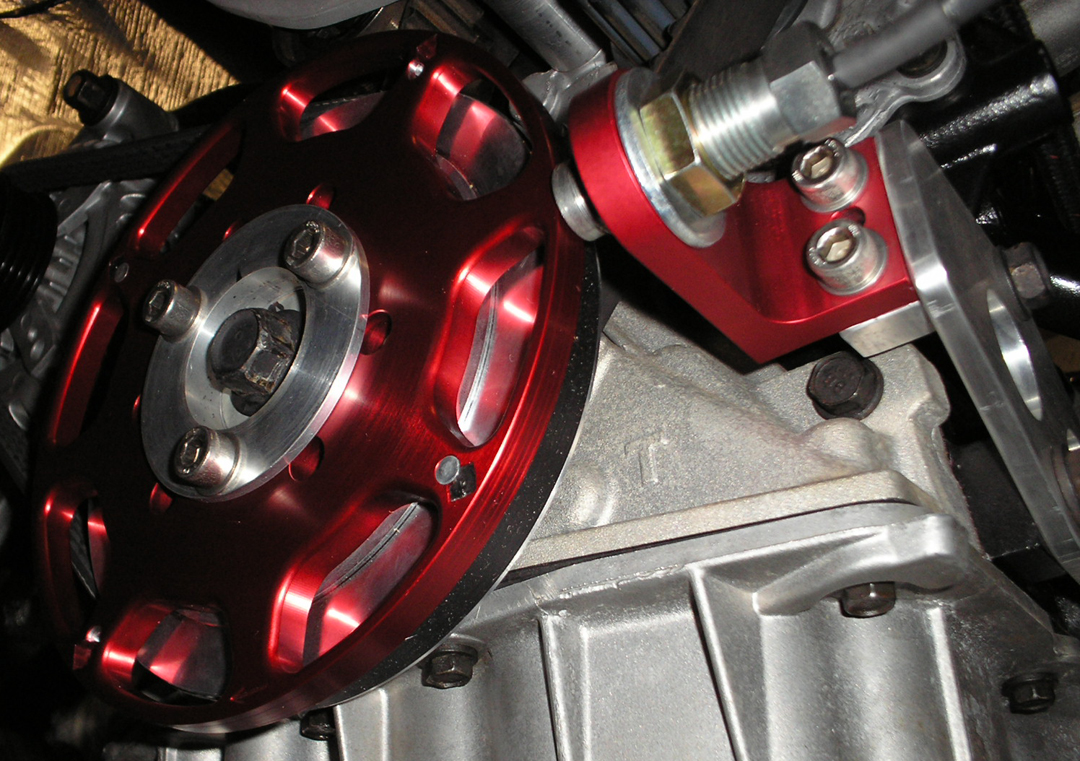

| MSD
Crank Trigger - Cutsom Mounted |
 |
|

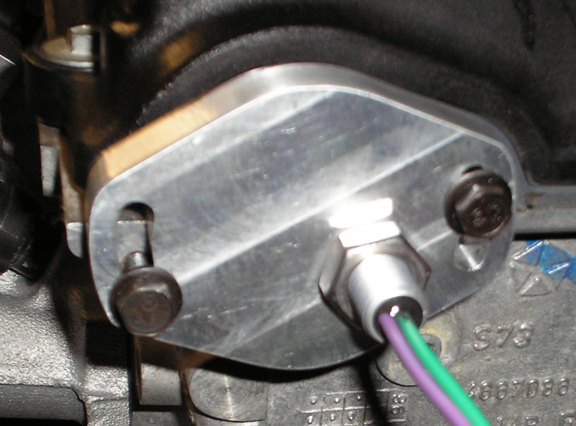

| MSD
Cam Sensor in Bad Ass Performance Adjustable Mount |
 |
|
| Forward
Motion FAST Wide Band O2 |
 |
|

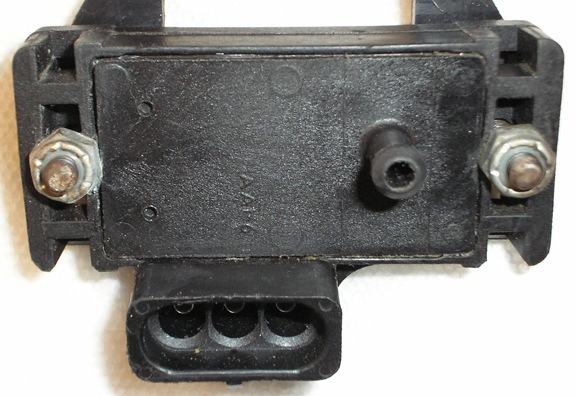

| Forward Motion FAST 3-Bar MAP Sensor |  |
|

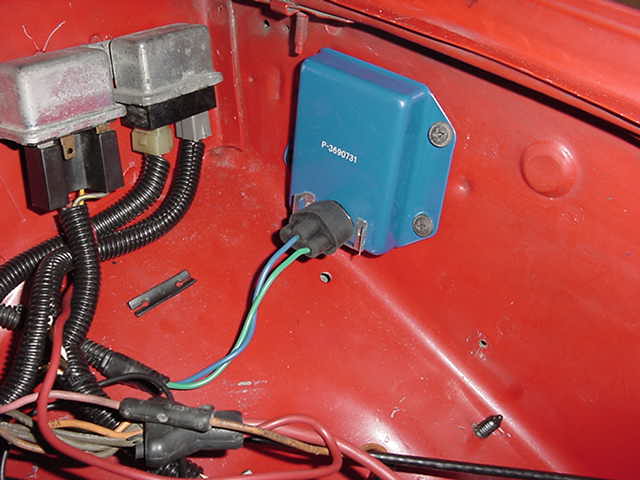

| Mopar Performance Voltage Regulator |  |
|
| NGK R5671A-9 Spark Plugs |  |
|

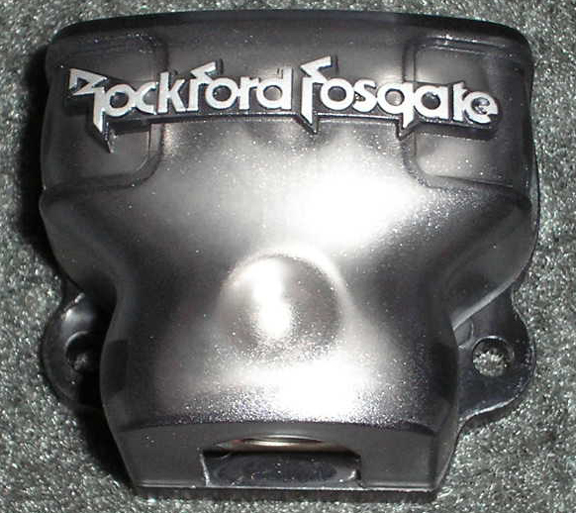

| Rockford Fosgate Power Distribution Block |  |
|

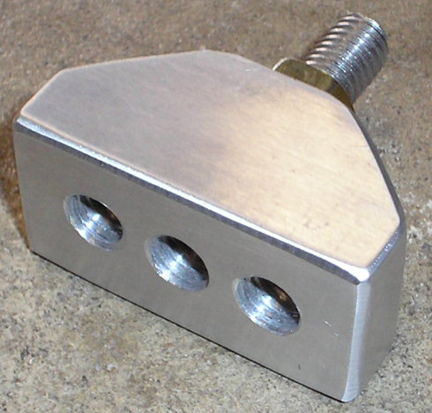

| Bad Ass Performance Ground Block |  |
|
 |
||

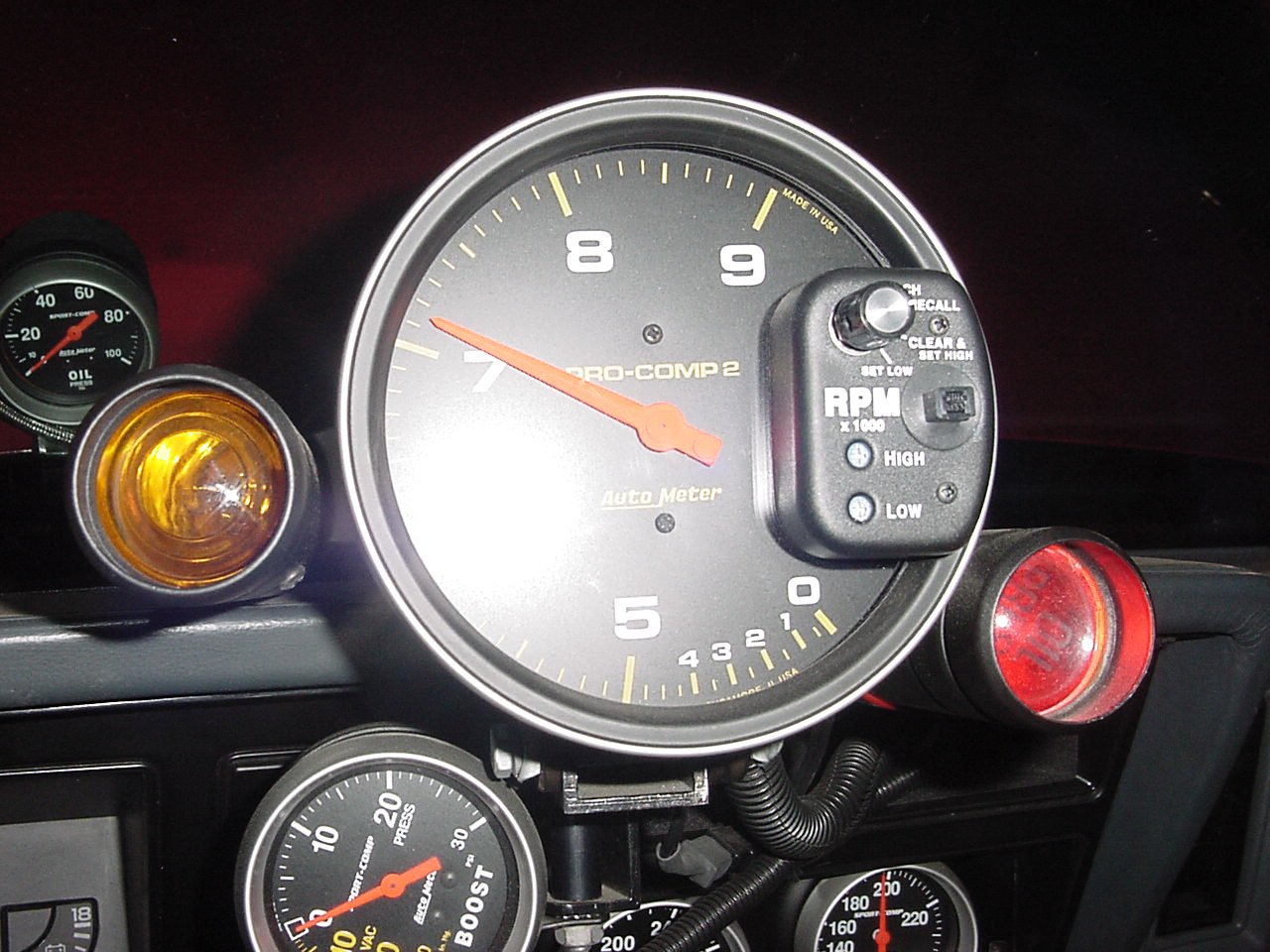

| Autometer
Pro Comp 2 9000rpm Dual Range Tach With 2-Stage Adjustable Shift Light
and Low Oil Pressure Light |
 |
|

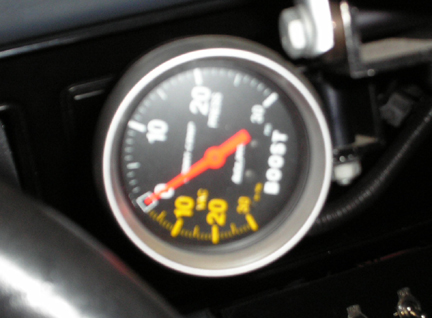

| Autometer
Sport Comp 30psi Boost / 30inHg Vacuum Guage |
 |
|

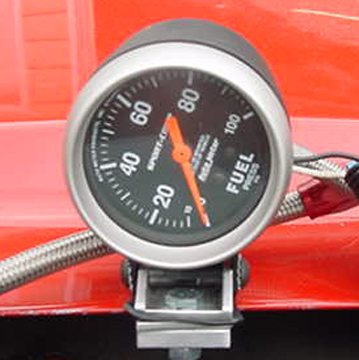

| Autometer
Sport Comp 100 psi Fuel Pressure Gauge |
 |
|

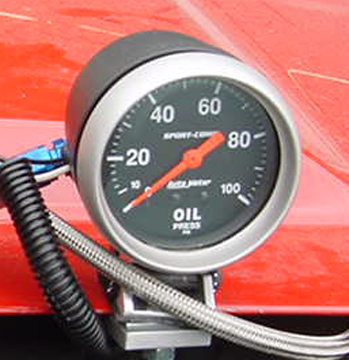

| Autometer
Sport Comp 100 psi Oil Pressure Gauge |
 |
|

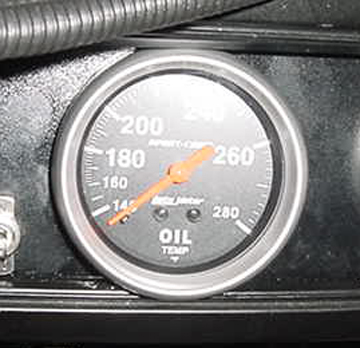

| Autometer
Sport Comp 280F Oil Temp Gauge |
 |
|

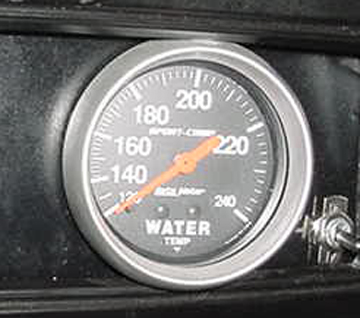

| Autometer
Sport Comp 240F Water Temp Gauge |
 |
|
| |
||
 |
||

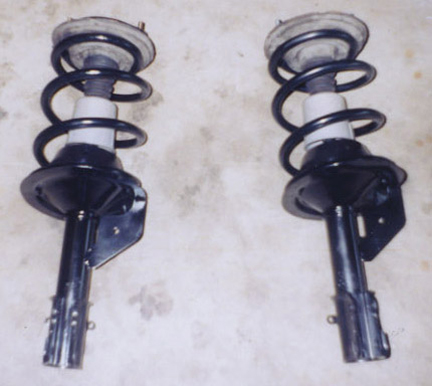

| KYB
Front Struts & MP Road Race Springs |
 |
|

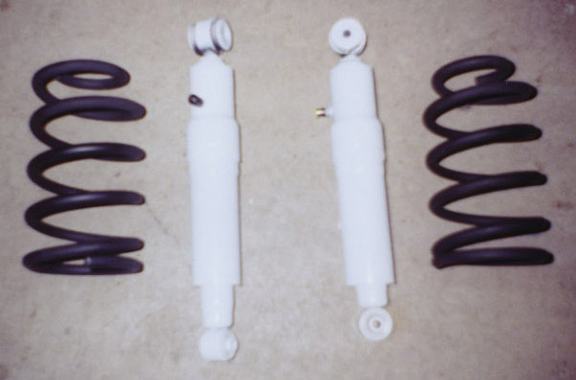

| Gabriel
Air Shocks & MP Road Race Springs |
 |
|

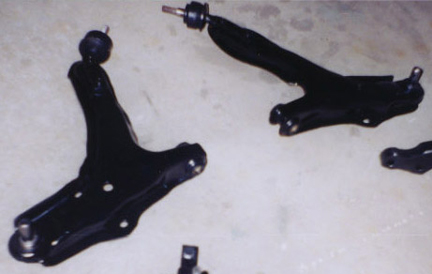

| LCA's rebuilt with TRW Ball Joints & Energy Suspension Urethane Bushings |  |
|
 |
||

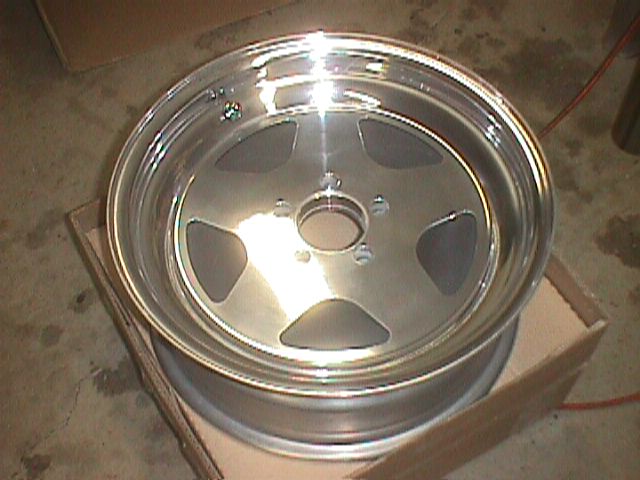

| Bogart
Drag-On-Fly Star - 15x8 Front Wheels |
 |
|

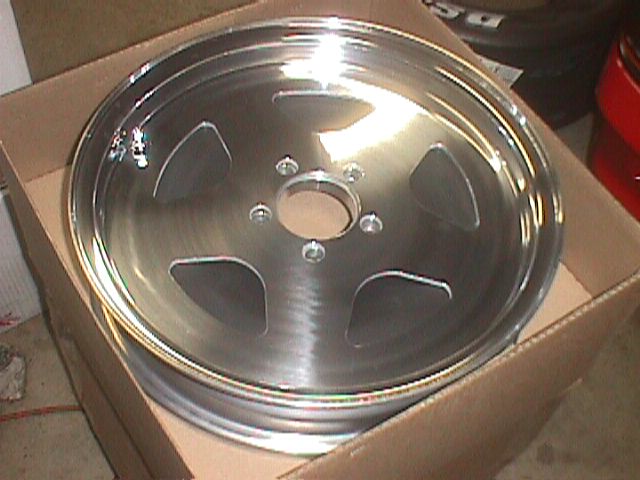

| Bogart
Drag-On-Fly Star - 15x 3.5 Rear Wheels |
 |
|

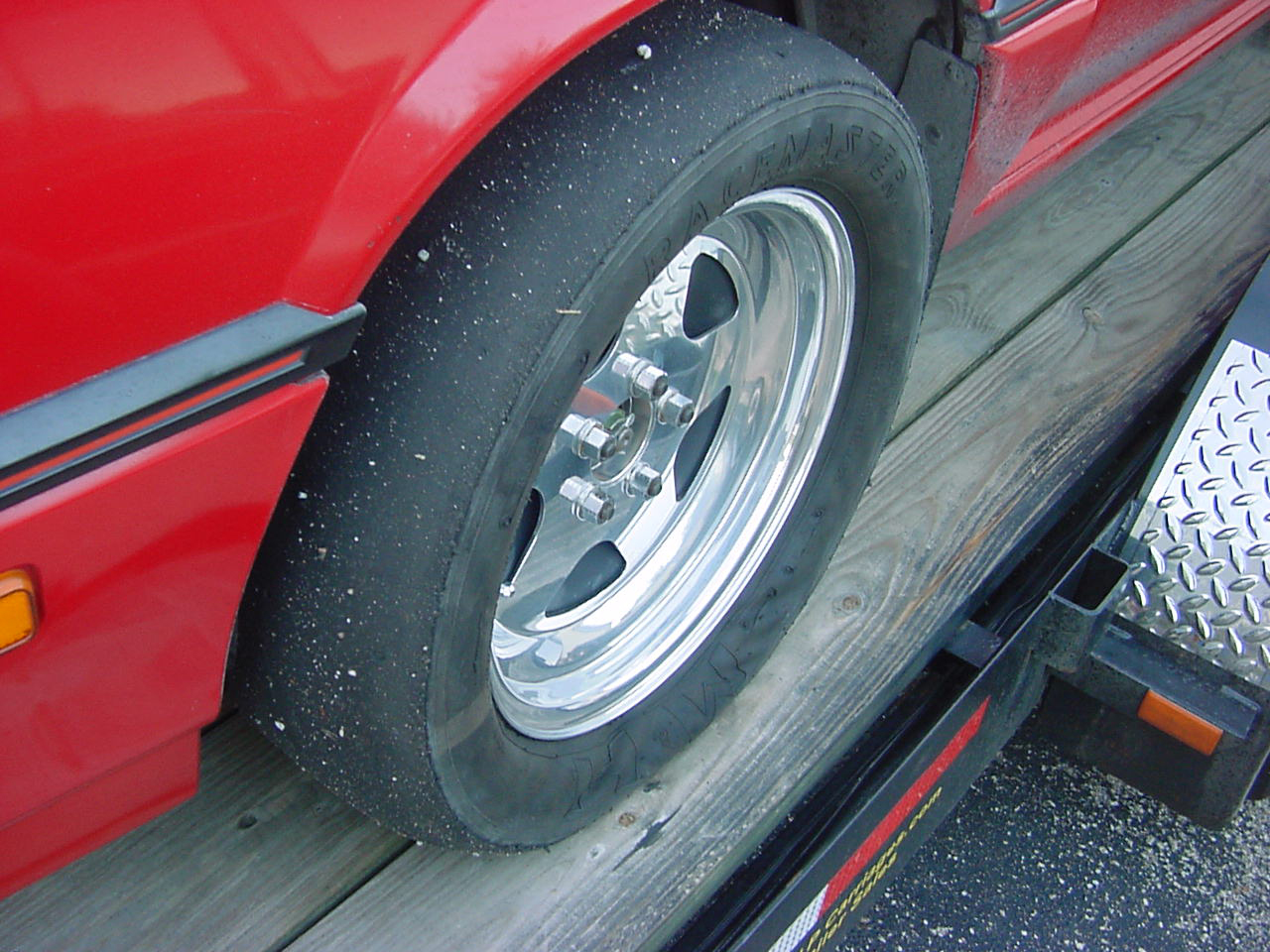

| M&H Racemaster 24.5" x 8.5" Slicks |  |
|
| Moroso DS-2 - 25" x 5" Skinnies |  |
|
 |
||

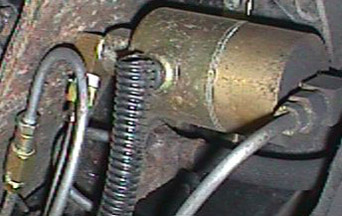

| Biondo
Line Locks - One For Each Rear Caliper |
 |
|
| Fluidyne
Prototype Aluminum Radiator |
 |
|

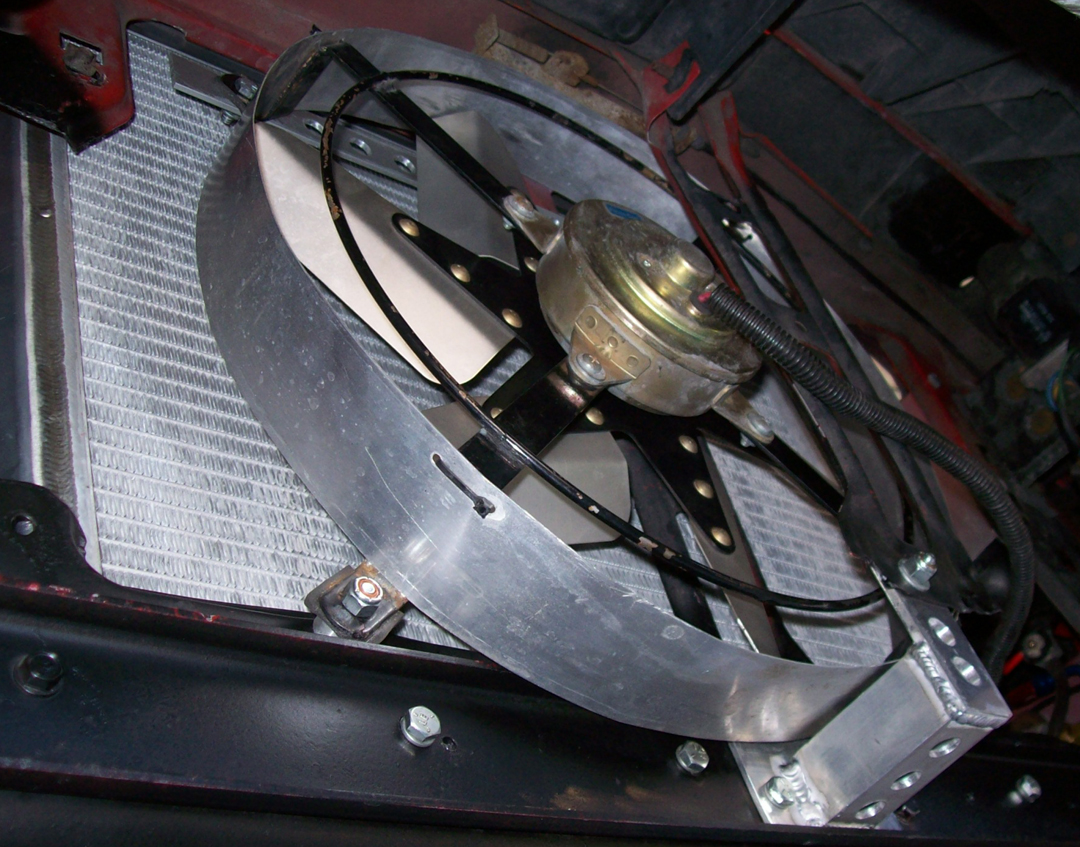

| PermaCool
2100cfm Radiator Fan With Custom Bad Ass Performance Aluminum Fan Shroud
and Mounts |
 |
|

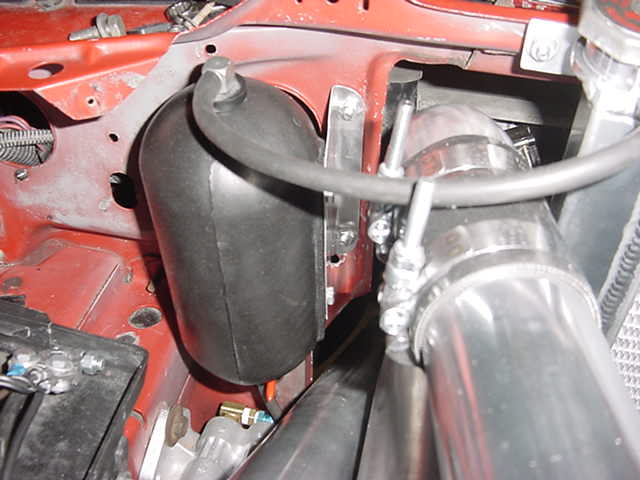

| Summit
Racing Overflow Bottle |
 |
|
| Secondary
Remote Turbo Oil Filter |
 |
|
| |
||
 |
||

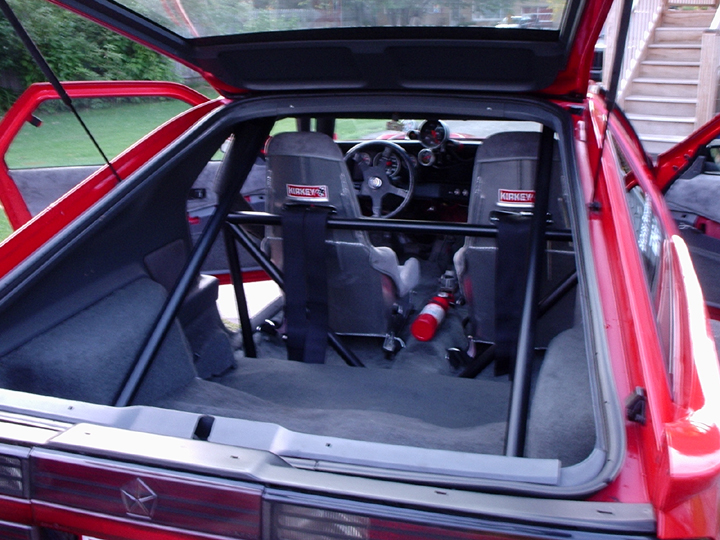

| S&W 10 pt Cage Installed Removed Rear Seat & Seat Belts |  |
|
| Kirkey Pro Drag Seats |  |
|

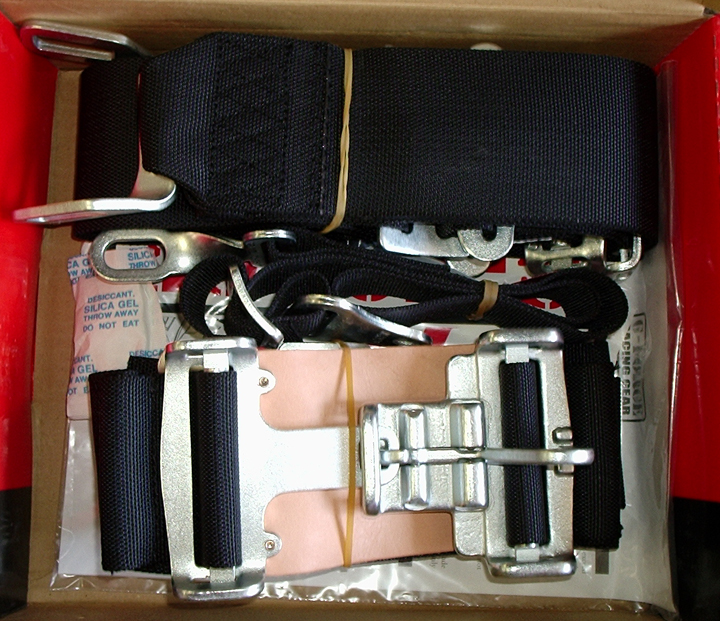

| G-Force 5-pt Harnesses |  |
|
| Hal-Gaurd Fire Extinguisher |  |
|

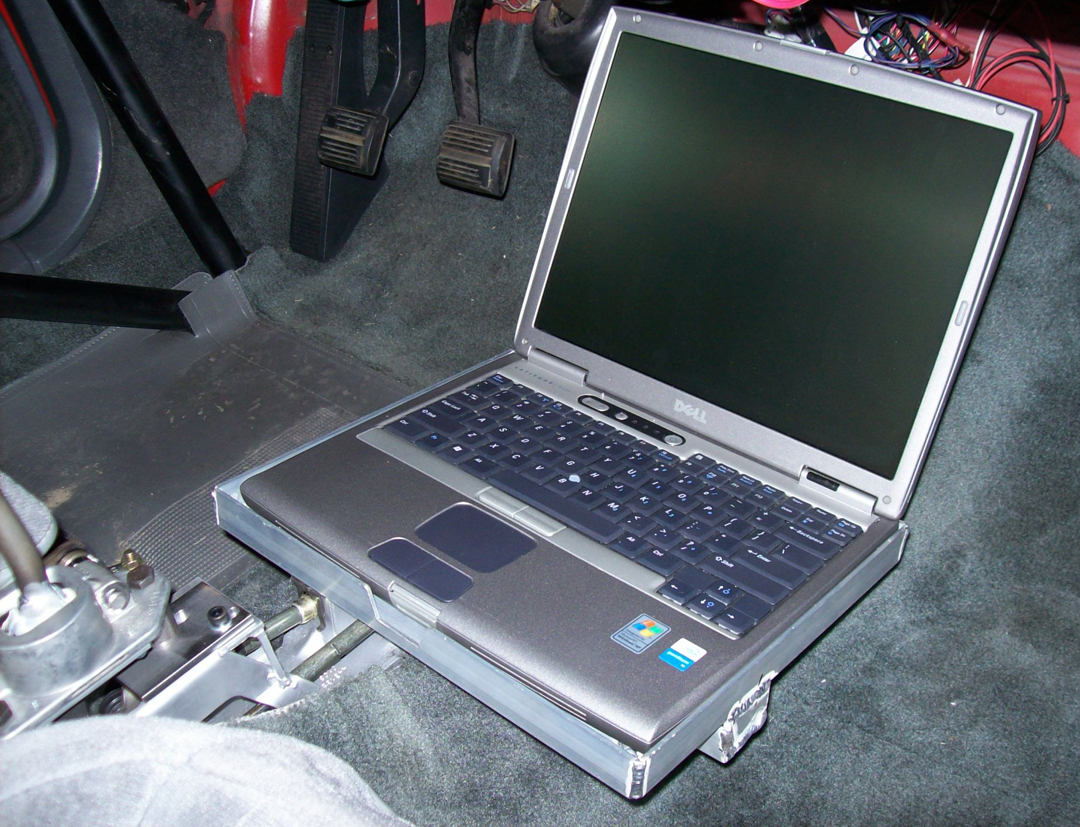

| Bad Ass Performance Laptop Stand |  |
|
| 4-Spoke Steering Wheel (Brand Unknown) |  |
|

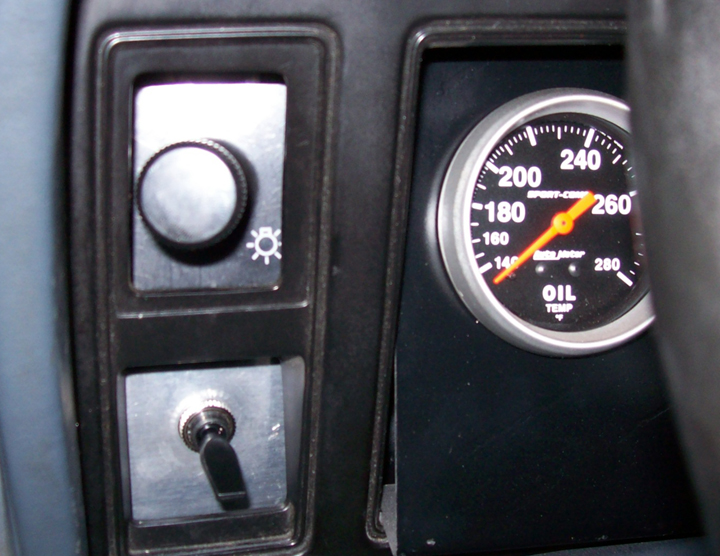

| Headlamp Switches |  |
|

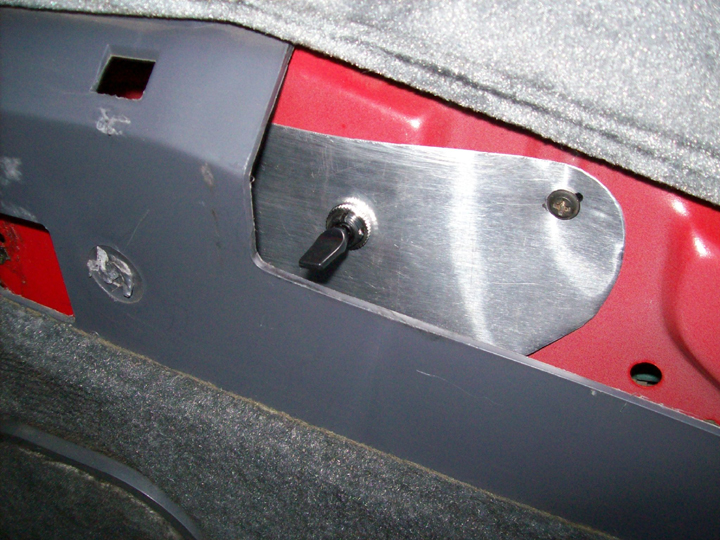

| Power Window Switch |  |
|
| Bad Ass Performance Aluminum Hood Latch Mount |  |
|

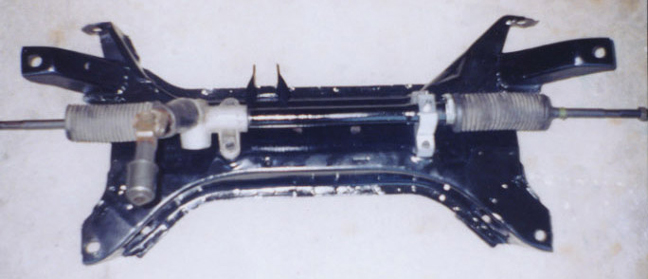

| Manual Steering Rack |  |
|

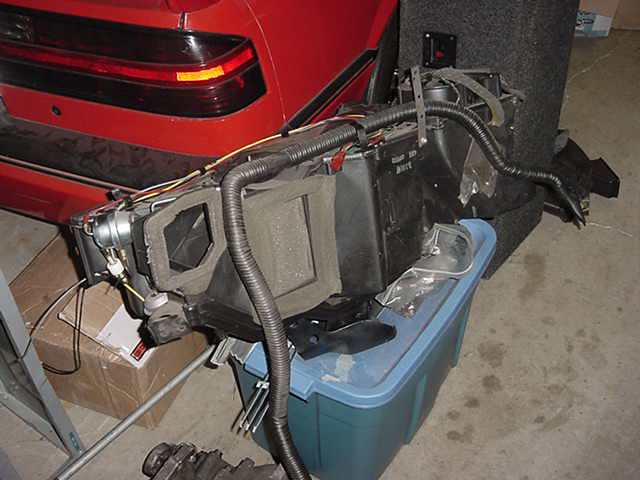

| Removed HVAC Box And Radio Dash Center |  |
|
| Removed Sound Deadener Behind Interior Panels |  |
|
| Removed Spare Tire & Jack |  |
|
 |
||

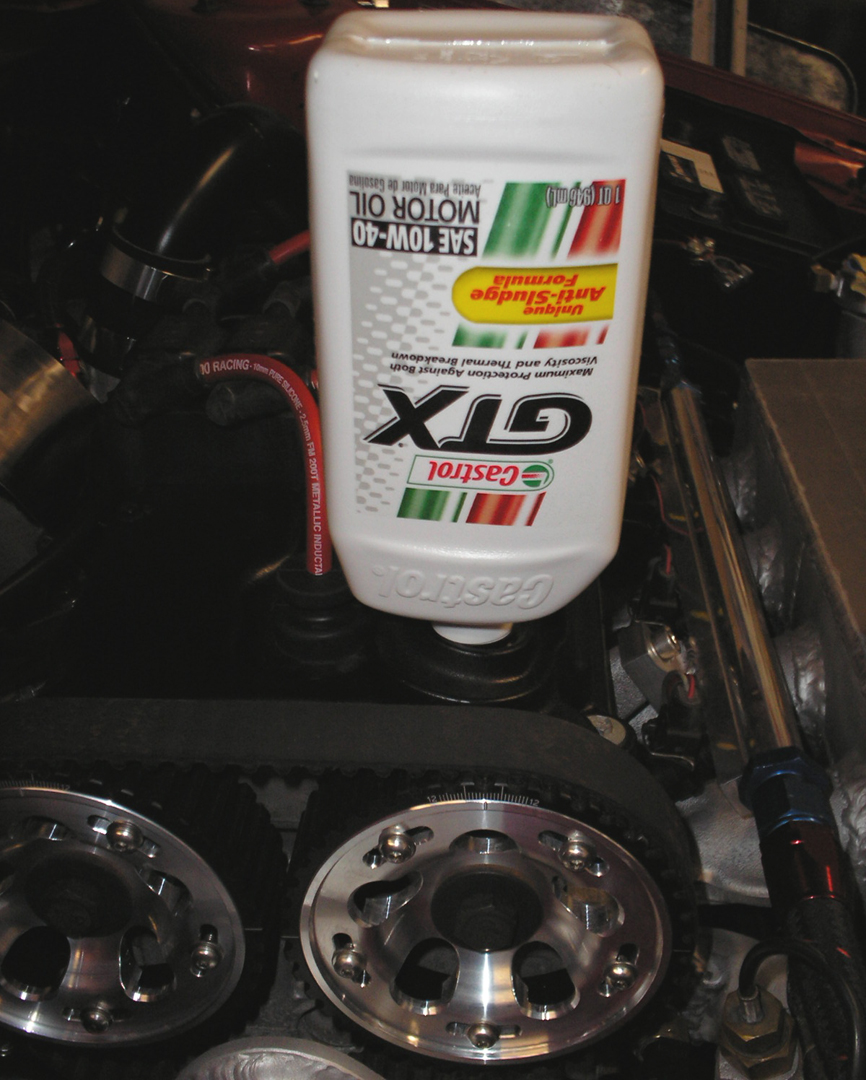

| Castrol
GTX 10w40 Oil |
 |
|

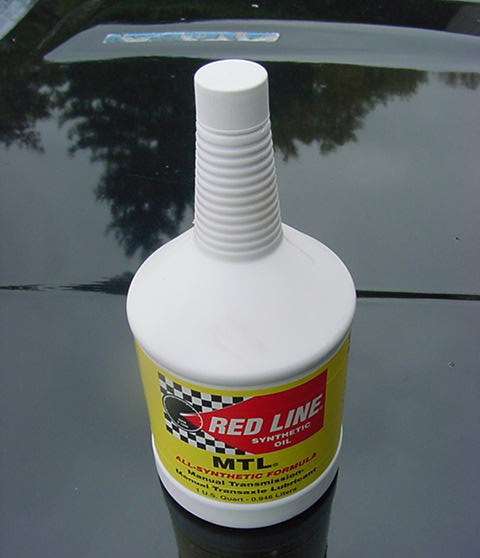

| Redline
MTL Transaxle Oil |
 |
|

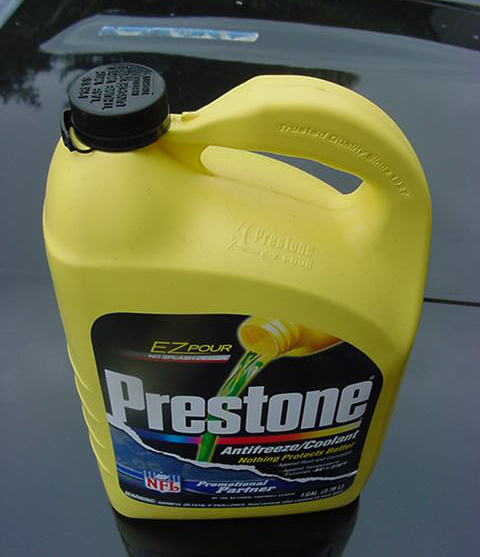

| Prestone
Anti-Freeze / Coolant Mixed 50/50 with Water |
 |
|

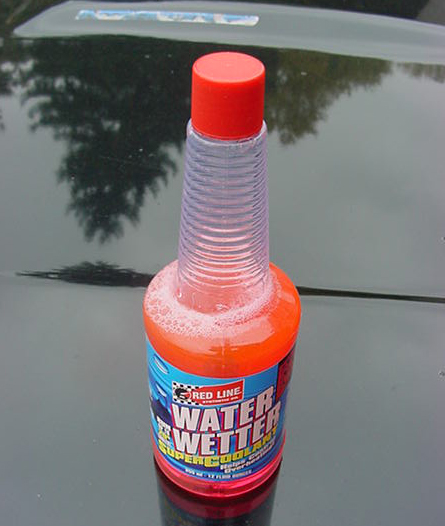

| Redline
Water Wetter |
 |
|

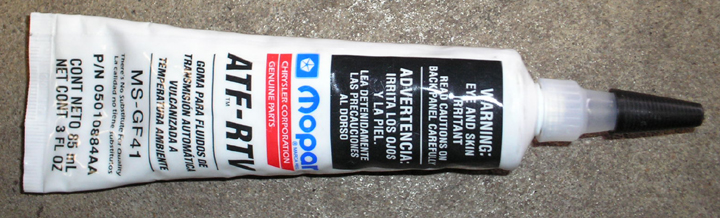

| Mopar
Black RTV |
 |
|
| Permatex Ultra Copper Hi Temp RTV |  |
|
| Dupli-color Engine Paint |  |
|
| Vault Zero |  |
|
| Jack Link's Beef Jerky |  |
|
