JT's 1987 CSX #751 Clone Project

Step 4: G-Body Radiator Install

When the engine swap was completed, the Radiator / Intercooler assembly out of CSX #252 was used to get the car running. Unable to find another CSX assembly for reasonable cost, the BadAss Performance Shelby Z donated it's Radiator / Intercooler to the Clone. Custom mounts were fabricated to the G-body unit could mount to the stock P-body locations. A custom Intercooler pipe was also fabricated because the G-body Intercooler lacks the angled outlet that the P-Body unit has

Click on pictures to enlarge, use your browser back to return

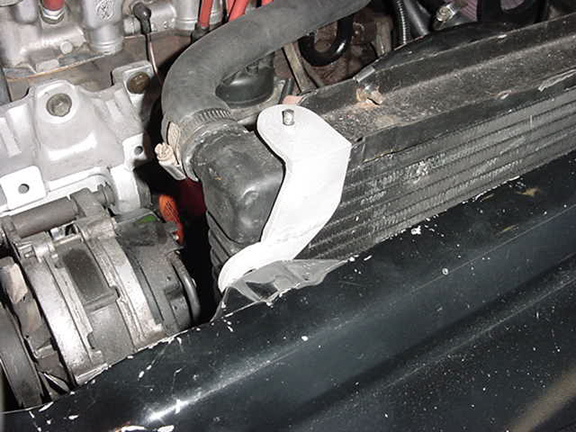

Passenger Side Custom Mount

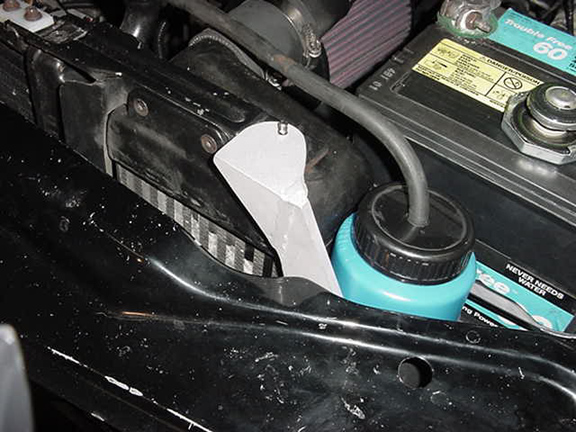

Driver Side Custom Mount & overflow
Custom I/C Piping

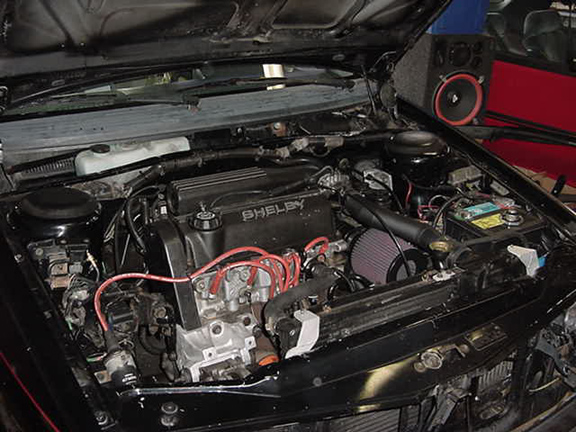

Installed

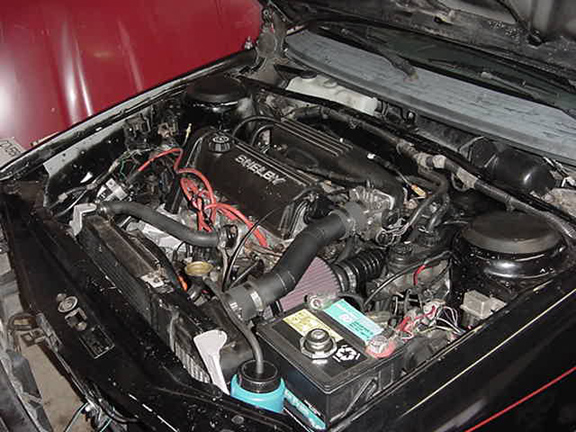

Installed

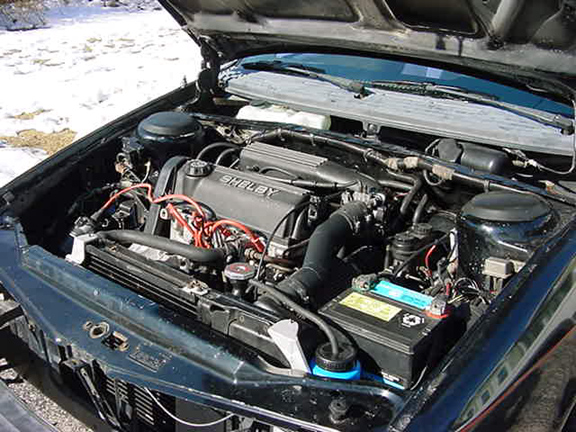

Installed
